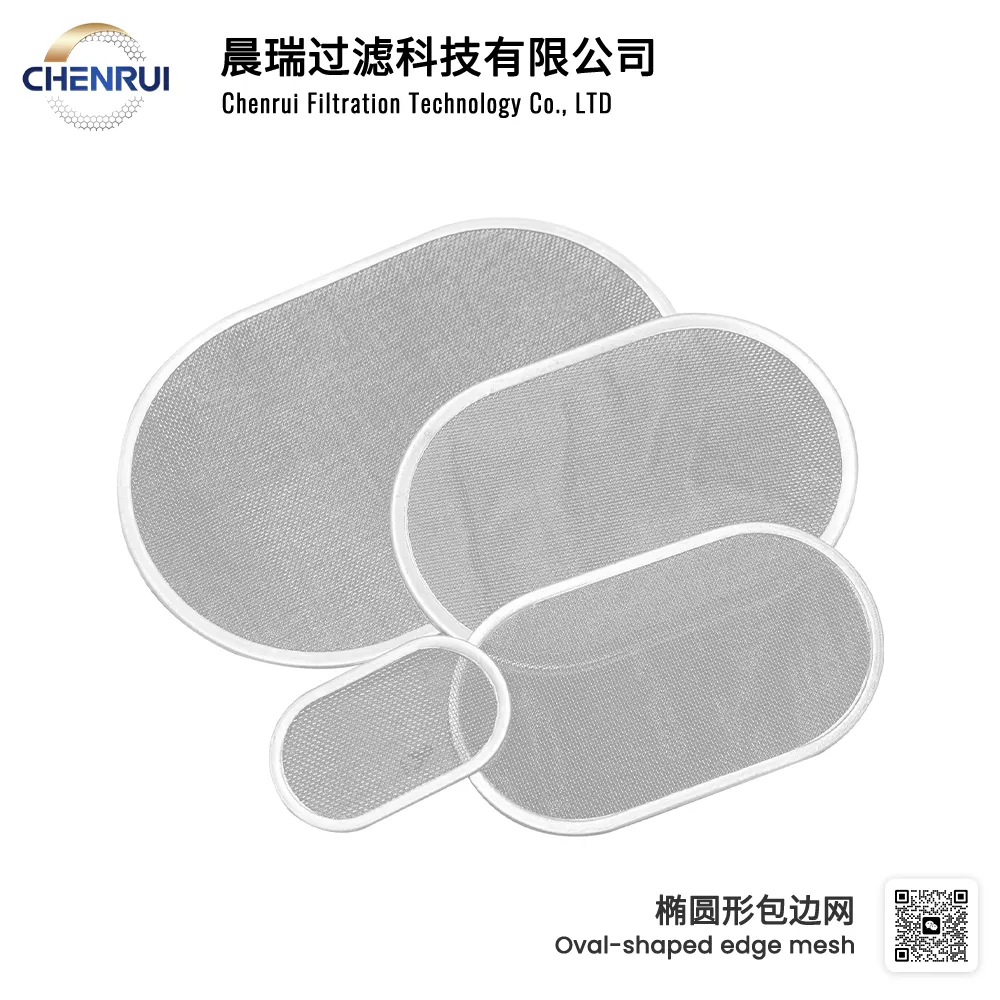

Oval-Shaped Edge Mesh for the Nonwoven Fabric Industry
The Oval-Shaped Edge Mesh is a specialized filtration component widely used in the nonwoven fabric industry, including spunbond, meltblown, and needle-punched lines. Its unique oval-shaped edge design ensures secure sealing, high filtration precision, and consistent fiber retention. Manufactured from high-quality stainless steel or wear-resistant alloys, this edge mesh is designed for durable performance under high-speed, high-temperature production conditions.
This article provides a comprehensive overview of the Oval-Shaped Edge Mesh, including quality inspection, maintenance procedures, common issues, and certification standards. The information is intended for factory engineers, maintenance personnel, and procurement specialists who aim to optimize nonwoven fabric production efficiency and product quality.
The performance and compatibility of the Oval-Shaped Edge Mesh depend on material, mesh size, and mechanical characteristics. Below is a detailed specification table:
| Parameter | Description | Typical Values |
|---|---|---|
| Material | Stainless steel / high-strength alloy | SUS304, SUS316, Custom Alloys |
| Mesh Size | Determines filtration precision | 50–400 mesh |
| Edge Type | Oval-shaped for secure sealing | Customizable dimensions |
| Thickness | Mechanical durability | 0.3–2.0 mm |
| Operating Temperature | Maximum continuous use | -20°C to 300°C |
| Airflow Resistance | Ensures stable production | ≤150 Pa |
| Chemical Resistance | Compatible with industrial cleaning agents | Excellent |
| Application | Nonwoven fabric production | Spunbond, meltblown, needle-punched |
Tip: Choosing the correct mesh size and thickness is essential to prevent fiber leakage or reduced airflow efficiency.
Constructed from premium stainless steel or alloys, resistant to abrasion from high-speed fiber streams.
Ensures long service life and minimal downtime.
Maintains consistent fiber retention across the nonwoven web.
Ensures uniform fabric thickness and density, enhancing overall product quality.
Provides better sealing in filter housings.
Reduces air bypass and fiber contamination.
Simplifies installation and replacement.
Tolerates industrial cleaning agents and solvents.
Performs reliably in high-temperature production environments, up to 300°C.
Optimized airflow resistance reduces fan power consumption.
Supports stable and energy-efficient production conditions.
Quality control is critical for ensuring high performance and reliability of Oval-Shaped Edge Mesh.
| Inspection Item | Standard | Measurement Method |
|---|---|---|
| Material Composition | ASTM / ISO standards | Chemical analysis |
| Mesh Size Accuracy | ±5% tolerance | Microscopic measurement |
| Thickness | ±0.05 mm | Vernier caliper |
| Edge Shape | Oval conformity | Visual and dimensional check |
| Surface Finish | Smooth, free of burrs | Visual inspection |
| Mechanical Strength | Minimum tensile strength | Tensile testing machine |
| Chemical Resistance | No corrosion after exposure | Immersion test |
| Airflow Resistance | ≤150 Pa | Airflow test bench |
Tip: Always verify batch quality certificates before installation to ensure production line compatibility and product reliability.
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced airflow | Clogged with fiber or dust | Clean using soft brush, compressed air, or mild cleaning agent |
| Fiber leakage | Improper mesh size or damaged edge | Replace with correctly sized screen |
| Deformed edge | Improper handling during installation | Reinstall carefully; avoid excessive force |
| Corrosion or rust | Exposure to harsh chemicals | Use corrosion-resistant alloys; follow cleaning guidelines |
| Short service life | High abrasion or temperature exceeding limits | Upgrade to wear-resistant material or verify production parameters |
Pro Tip: Maintain a log of inspections and replacements to predict lifespan and plan preventive maintenance.
Regular maintenance ensures long-lasting performance and reduces downtime.
Visual Inspection: Check for cracks, deformations, or corrosion.
Cleaning: Remove fiber residue using a soft brush, compressed air, or mild detergent.
Airflow Monitoring: Check pressure drop; sudden changes indicate clogging or damage.
| Task | Frequency | Method |
|---|---|---|
| Dimensional Check | Quarterly | Measure length, width, and thickness |
| Deep Cleaning | Monthly | Ultrasonic cleaning or chemical soaking if compatible |
| Lubrication (if required) | Bi-annual | Apply protective coating to prevent corrosion |
| Replacement | As Needed | Replace screens showing wear or deformation |
Tip: Store spare mesh screens in a dry, dust-free environment to prevent damage and contamination.
Ensuring compliance with international quality standards guarantees safety, reliability, and performance.
Note: Certified products are recommended for high-speed nonwoven production lines to ensure reliability and long-term operation.
Proper packaging ensures safe transport and storage:
Individual Wrapping: Protects mesh surface and oval edges.
Bulk Packaging: Cartons with cushioning material to prevent deformation.
Labeling: Includes mesh size, material type, batch number, and production date.
Storage Conditions:
Dry, dust-free environment
Avoid direct sunlight or chemical exposure
Temperature-controlled storage is recommended
The Oval-Shaped Edge Mesh is a vital component for the nonwoven fabric industry, offering:
Durable, wear-resistant performance under high-speed and high-temperature conditions
Precision filtration for consistent fabric quality
Secure sealing and energy-efficient airflow
Ease of installation and maintenance
By following proper installation, maintenance, and using certified products, manufacturers can ensure consistent fabric quality, minimize downtime, and optimize production efficiency.
