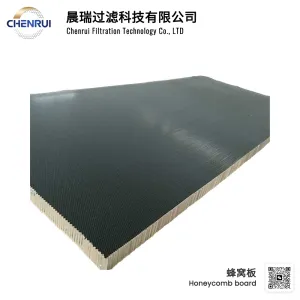

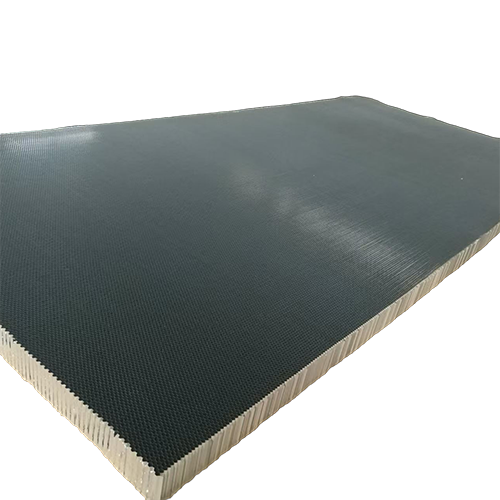

Honeycomb Panel High Strength Stainless Steel Wire Mesh
The Honeycomb Panel High Strength Stainless Steel Wire Mesh is a cutting-edge solution engineered for industrial, commercial, and architectural applications requiring superior structural rigidity, corrosion resistance, and durability. Its honeycomb design enhances load-bearing capacity while maintaining lightweight performance, and the high-strength stainless steel mesh ensures efficient filtration, ventilation, and protection.
This advanced panel is suitable for demanding environments, including chemical processing plants, cleanrooms, HVAC systems, machinery enclosures, and decorative architectural facades. Its combination of strength, precision, and longevity makes it a preferred choice for projects that require both structural integrity and high performance.
The honeycomb structure provides unmatched rigidity while reducing material weight. The stainless steel wire mesh offers high tensile strength, corrosion resistance, and long-term reliability. Together, these elements create a panel that delivers both structural and functional performance.
High Strength: Honeycomb design ensures maximum load-bearing capacity.
Corrosion Resistant: Made from premium 304/316 stainless steel for long-term durability.
Efficient Airflow and Filtration: Optimized mesh captures dust, particles, and contaminants.
Lightweight: Structural integrity without unnecessary weight.
Durable Construction: Designed to withstand mechanical stress and environmental challenges.
Versatile Applications: Suitable for industrial, architectural, and commercial uses.
The Honeycomb Panel High Strength Stainless Steel Wire Mesh consists of several key components:
Stainless Steel Wire Mesh Layer
Provides primary filtration, particle capture, and airflow control.
Honeycomb Core
Hexagonal or custom-shaped core enhances rigidity and evenly distributes mechanical loads.
Support Frame
Aluminum or stainless steel frame offers secure mounting and additional structural support.
Fasteners and Connectors
Screws, bolts, and clamps ensure stable installation.
Optional Coatings
Anti-corrosion, fire-retardant, or surface treatments for specialized applications.
The following table lists standard specifications. Custom options are available to suit project-specific requirements.
| Parameter | Specification Options |
|---|---|
| Material | 304/316 stainless steel |
| Wire Diameter | 0.2 mm – 1.2 mm |
| Mesh Size | 1 mm – 10 mm |
| Honeycomb Thickness | 10 mm – 50 mm |
| Panel Size | 500×500 mm, 1000×1000 mm, 1200×2400 mm (custom sizes available) |
| Surface Finish | Polished, brushed, matte |
| Corrosion Resistance | Salt spray test > 500 hours |
| Load Capacity | Up to 2000 kg/m² (depending on thickness) |
| Temperature Resistance | -40°C to 400°C |
| Applications | Filtration, ventilation, architectural facades, protective panels |
The Honeycomb Panel High Strength Stainless Steel Wire Mesh is suitable for a wide range of applications:
Industrial Filtration
Dust collection units, chemical processing, and cleanroom systems.
Ventilation Systems
HVAC units, laboratory air handling systems, and commercial ventilation panels.
Architectural Use
Decorative facades, partition walls, sunshades, and protective barriers.
Protective Panels and Enclosures
Machinery guards, equipment enclosures, and airflow control structures.
Specialty Projects
Aerospace, automotive, electronics, and other sectors requiring lightweight, high-strength panels.
Our company provides comprehensive technical services to ensure optimal performance and client satisfaction:
Design Consultation
Assistance in selecting panel size, honeycomb thickness, mesh specifications, and surface finish.
Installation Guidance
Detailed instructions, drawings, and on-site support for correct and efficient installation.
Customization Services
Tailored honeycomb shapes, panel dimensions, and coatings for specific industry requirements.
Maintenance Support
Preventive maintenance plans, cleaning procedures, and upgrade recommendations.
Troubleshooting Assistance
Rapid response to operational or performance issues to minimize downtime.
Verify panel specifications against project requirements.
Ensure the installation area is clean, dry, and free of debris.
Secure the support frame to the intended surface using appropriate fasteners.
Ensure the frame is level, aligned, and stable.
Align the honeycomb panel with the frame, ensuring correct orientation.
Insert fasteners, clamps, or bolts to secure the panel in place.
Check for even spacing and secure attachment.
Reconnect any mechanical or ventilation systems.
Test airflow, filtration, and structural integrity.
Make adjustments if necessary for optimal performance.
Routine Cleaning: Use compressed air or mild detergents to remove dust and debris.
Periodic Inspection: Check for corrosion, structural integrity, and mesh damage every 3–6 months.
Preventive Upgrades: Replace worn panels, apply anti-corrosion coatings, or reinforce frames as needed.
Documentation: Maintain records of inspections, maintenance, and panel replacements for quality assurance.
| Fault | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow | Dust buildup or mesh blockage | Clean or replace panel |
| Corrosion or Rust | Harsh environment exposure | Apply protective coating or replace affected panel |
| Structural Deformation | Excessive load or impact | Inspect frame and replace damaged panel |
| Mesh Damage | Abrasion or puncture | Replace mesh or panel |
Safety Note: Always ensure the system is powered down and proper protective equipment is used during maintenance or repair.
High Load Capacity: Honeycomb structure supports heavy loads while maintaining lightweight design.
Corrosion Resistance: Stainless steel ensures long-lasting performance in harsh environments.
Efficient Filtration: High-strength mesh captures fine particles effectively.
Versatility: Suitable for industrial, commercial, and architectural applications.
Durability: Designed for long-term reliability with minimal maintenance.
Easy Installation: Modular panels and standardized components simplify mounting and replacement.
The Honeycomb Panel High Strength Stainless Steel Wire Mesh is a versatile, high-performance solution for demanding industrial, commercial, and architectural projects. Its honeycomb design provides exceptional rigidity, while the stainless steel mesh ensures efficient filtration, corrosion resistance, and durability. Combined with professional technical support, detailed operation procedures, and an upgrade maintenance plan, this panel delivers long-lasting, reliable performance. Ideal for filtration, ventilation, protective enclosures, and decorative applications, it is the perfect choice for projects requiring both strength and efficiency.
