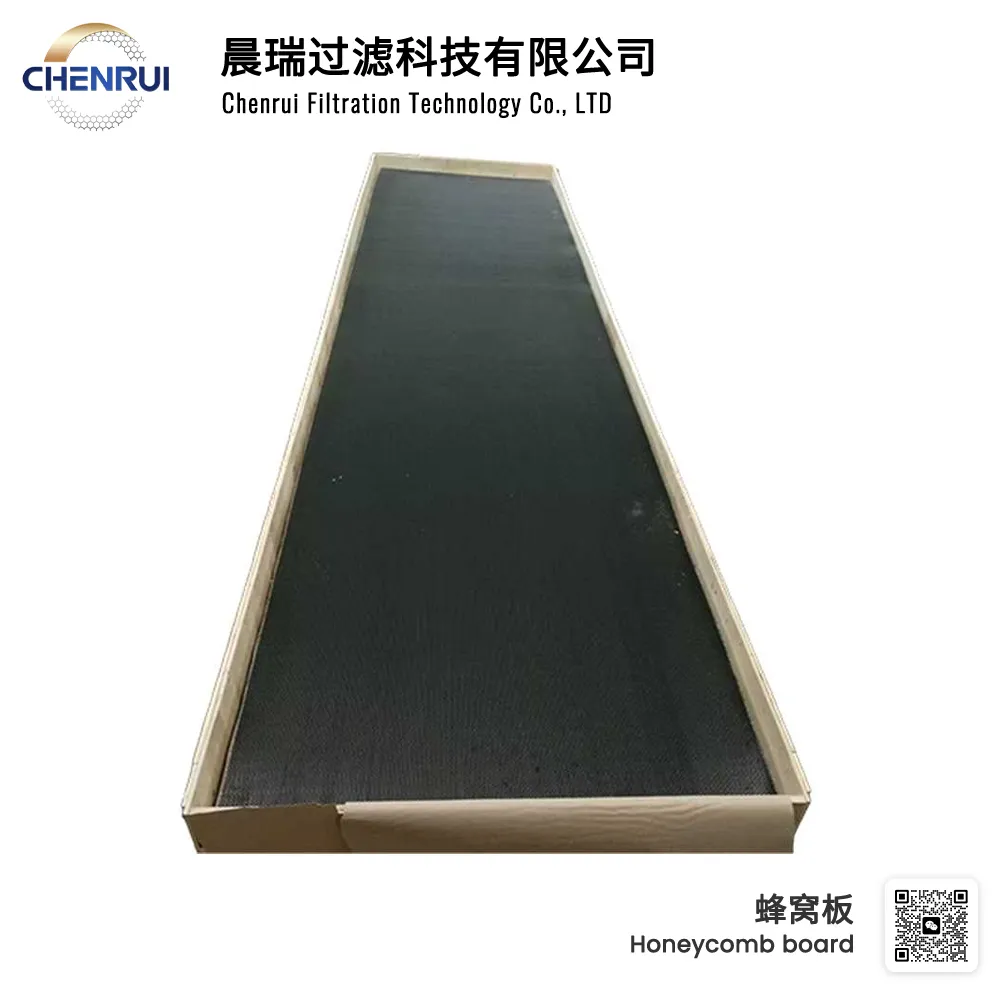

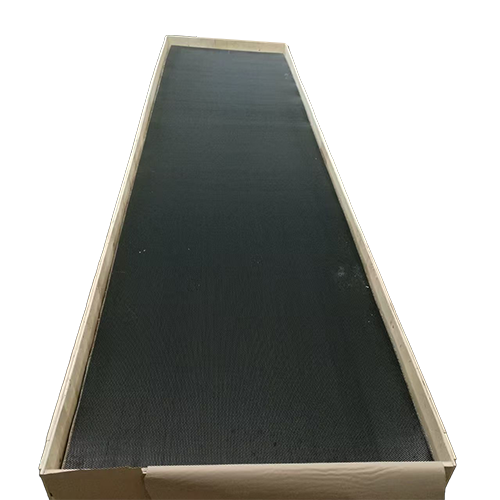

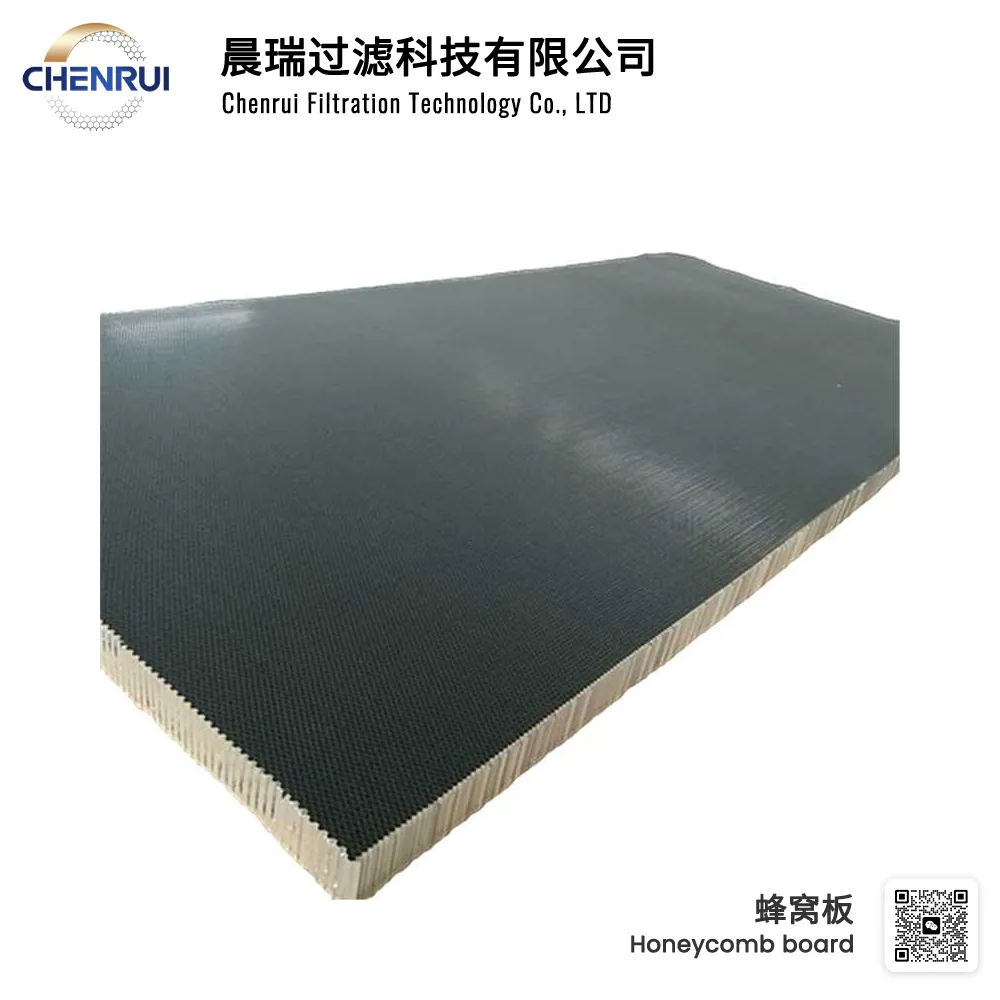

Honeycomb Panel High Efficiency Stainless Steel Wire Mesh
The Honeycomb Panel High Efficiency Stainless Steel Wire Mesh is a premium filtration and structural solution designed for demanding industrial, commercial, and architectural applications. Its unique honeycomb design combines high structural rigidity with lightweight performance, while the high-efficiency stainless steel mesh ensures excellent particle capture and corrosion resistance.
This advanced panel is ideal for environments such as industrial filtration systems, cleanrooms, HVAC units, ventilation panels, and protective enclosures. Its robust construction and precise design offer reliable performance, longevity, and ease of maintenance.
The honeycomb structure provides maximum strength while minimizing material usage. High-efficiency stainless steel wire mesh offers superior filtration capabilities, capturing fine particles and improving air quality. The combination of honeycomb rigidity and mesh efficiency makes this panel suitable for heavy-duty applications where durability and performance are essential.
High Efficiency Filtration: Captures micro-particles, dust, and contaminants effectively.
Corrosion Resistance: Premium stainless steel withstands harsh environments and chemical exposure.
Lightweight & Strong: Honeycomb design provides exceptional structural integrity.
Durable Construction: Long-lasting performance in industrial and commercial settings.
Easy Maintenance: Modular design facilitates cleaning, inspection, and replacement.
Versatile Applications: Suitable for filtration systems, protective panels, architectural facades, and more.
The following table outlines standard specifications for Honeycomb Panel High Efficiency Stainless Steel Wire Mesh. Custom configurations are available based on project requirements.
| Parameter | Specification Options |
|---|---|
| Material | 304/316 stainless steel |
| Wire Diameter | 0.2 mm – 1.0 mm (customizable) |
| Mesh Size | 1 mm – 10 mm |
| Honeycomb Thickness | 10 mm – 50 mm |
| Panel Size | 500×500 mm, 1000×1000 mm, 1200×2400 mm (custom sizes available) |
| Surface Finish | Polished, brushed, or matte |
| Corrosion Resistance | Salt spray test > 500 hours |
| Temperature Resistance | -40°C to 400°C |
| Weight | 5 – 20 kg/m² depending on thickness and mesh size |
| Applications | Industrial filtration, HVAC, architectural panels, protective enclosures |
| Service Life | 5–10 years (depending on usage and maintenance) |
Proper storage ensures the panel maintains its structural integrity and corrosion resistance. Follow these guidelines:
Environment
Store in a dry, well-ventilated area away from direct sunlight and moisture.
Temperature
Maintain ambient storage temperatures between -20°C and 50°C.
Handling
Avoid dropping or impacting panels to prevent deformation.
Store flat or upright with support to prevent bending.
Protection
Cover panels with protective sheets or packaging to avoid dust accumulation and scratches.
Implementing a systematic maintenance plan ensures the panel performs at peak efficiency for extended periods.
Weekly Inspection: Check for visible damage, debris accumulation, or corrosion signs.
Monthly Cleaning: Use compressed air or mild detergent solutions to remove dust and contaminants.
Quarterly Check: Inspect structural integrity, fasteners, and mounting points.
Replace aging or heavily worn panels with upgraded high-efficiency models.
Apply anti-corrosion coatings for panels exposed to harsh chemical environments.
Retrofit existing systems with reinforced honeycomb frames for additional rigidity.
Maintain a log of inspections, cleanings, and panel replacements.
Include manufacturer recommendations for optimal performance.
Understanding common issues and their solutions helps maintain system efficiency and prolong panel lifespan.
| Fault | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow | Dust or debris accumulation | Clean or replace panel |
| Corrosion Signs | Exposure to chemicals or moisture | Apply protective coating or replace affected panel |
| Structural Deformation | Excessive impact or load | Inspect frame and replace damaged panel |
| Mesh Damage | Physical abrasion or punctures | Replace mesh or panel |
Note: Always follow safety guidelines when performing repairs. Wear protective equipment and ensure the system is powered down before maintenance.
The Honeycomb Panel High Efficiency Stainless Steel Wire Mesh is suitable for:
Industrial Filtration Systems: Dust collection units, chemical processing plants.
HVAC & Ventilation Panels: Commercial buildings, laboratories, and cleanrooms.
Architectural Applications: Facades, decorative panels, partition walls.
Protective Enclosures: Machinery guards, safety barriers, and airflow control units.
Specialty Projects: Aerospace, automotive, and electronics requiring lightweight and durable panel solutions.
High Filtration Efficiency: Captures micro-particles with precision.
Corrosion Resistant: Stainless steel material ensures long-term durability.
Structural Strength: Honeycomb design provides rigidity with minimal weight.
Easy to Maintain: Modular panels simplify cleaning and replacement.
Versatile Applications: Adaptable for industrial, commercial, and architectural use.
Extended Lifespan: Proper maintenance and upgrades prolong operational life.
The Honeycomb Panel High Efficiency Stainless Steel Wire Mesh delivers a perfect balance of durability, efficiency, and versatility. Its advanced honeycomb structure combined with high-quality stainless steel wire mesh provides reliable filtration, structural integrity, and long-term performance. With proper storage, maintenance, and fault management, these panels serve as an ideal solution for demanding industrial, commercial, and architectural applications. Backed by technical support and upgrade plans, this product ensures sustained efficiency, operational reliability, and compliance with modern industry standards.
