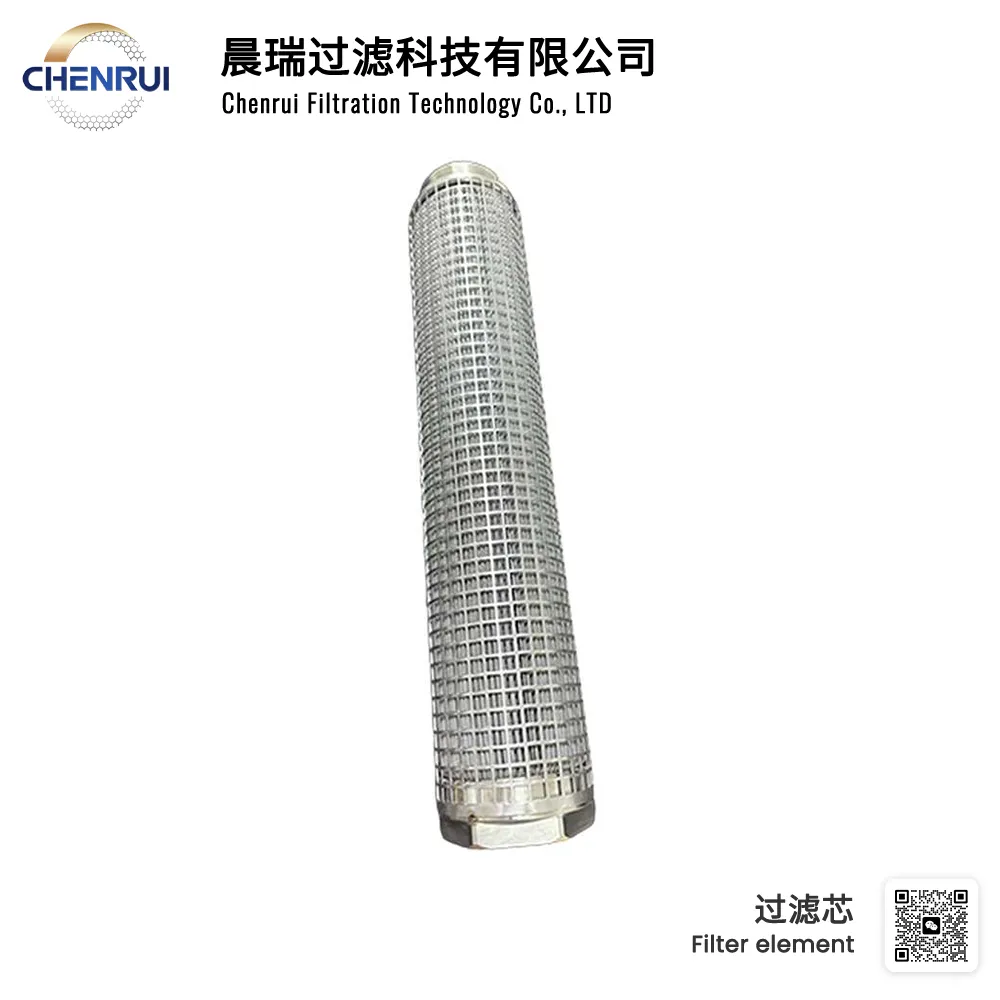

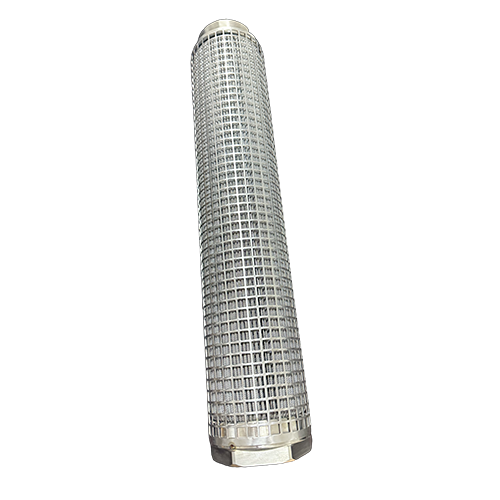

High-Precision Stainless Steel Filter Element with Protective Mesh
The High-Precision Stainless Steel Filter Element with Protective Mesh is a premium industrial filtration solution designed to deliver exceptional filtration accuracy, durability, and long-term performance. Constructed from high-quality stainless steel and integrated with a protective mesh layer, this filter element ensures reliable particle removal while preventing mechanical damage to the pleated media.
This filter element is ideal for chemical processing, petrochemical industries, power plants, HVAC systems, and high-temperature liquid or gas filtration, offering consistent performance even under demanding conditions. Its robust design, combined with high-precision engineering, makes it a versatile solution for industries requiring both strength and high-accuracy filtration.
High-Precision Filtration: Pleated stainless steel media ensures accurate particle capture and consistent filtration efficiency.
Protective Mesh Layer: Shields pleats from mechanical damage, extending filter life and maintaining performance.
Durable Stainless Steel Construction: Resistant to corrosion, high temperatures, and mechanical stress.
Versatile Applications: Suitable for Liquid and Gas Filtration in multiple industrial sectors.
Easy Maintenance: Designed for simple cleaning, inspection, and replacement.
Reusable Design: Can be cleaned and reinstalled multiple times, reducing replacement costs.
Compact and Lightweight: Facilitates easy installation and handling in confined spaces.
| Parameter | Specification Options |
|---|---|
| Material | High-precision stainless steel |
| Filtration Type | Pleated filter element with protective mesh |
| Micron Rating | 1 – 100 μm (customizable) |
| Outer Diameter | 50 – 300 mm (customizable) |
| Length | 100 – 1000 mm (customizable) |
| Operating Temperature | -20°C to 250°C |
| Maximum Pressure | 10 – 30 bar |
| Flow Capacity | 50 – 5000 L/min |
| Applications | Chemical, petrochemical, power plants, HVAC, food processing |
Custom designs are available for micron ratings, dimensions, and flow capacities to meet specific industrial requirements.
The High-Precision Stainless Steel Filter Element meets strict environmental and safety standards, ensuring reliable operation while minimizing environmental impact:
| Standard / Certification | Description |
|---|---|
| ISO 9001 | Quality management system compliance |
| CE Marking | European safety and performance standards |
| RoHS Compliance | Restriction of hazardous substances |
| ASTM A240 / A480 | Stainless steel material standards |
| FDA / Food-Grade Compliance | Optional for food and beverage applications |
Compliance with these standards guarantees durable, safe, and environmentally responsible filtration solutions for industrial operations.
The filter element consists of the following key components:
| Component | Description |
|---|---|
| Filter Media | High-precision pleated stainless steel sheets for accurate particle removal |
| Protective Mesh | Stainless steel mesh layer that protects pleats from mechanical damage |
| End Caps | Stainless steel end caps providing structural stability and sealing |
| Support Core | Reinforced internal core maintaining shape under high pressure and temperature |
| Outer Cage/Frame | Protects pleats and mesh from external mechanical stress |
| Optional Gaskets | Ensures tight sealing within filter housings |
Optional accessories, such as brackets, clamps, or protective covers, are available for enhanced convenience.
The filter element is suitable for a wide range of industrial applications:
Chemical Industry: Filtration of acids, alkalis, solvents, and other chemicals.
Petrochemical: Protects pipelines and equipment from fine particulate contamination.
Power Generation: Ensures clean cooling and process fluids in power plants.
HVAC Systems: High-efficiency air filtration in industrial air handling units.
Food and Beverage: Maintains hygiene standards in liquid processing.
Proper installation is essential to ensure peak performance:
Inspect the Filter Housing: Ensure compatibility and remove any debris.
Check Seals and Gaskets: Verify integrity and proper positioning.
Install Filter Element: Insert the element, ensuring the protective mesh is oriented outward.
Secure End Caps and Housing: Tighten clamps or brackets evenly to prevent damage.
Verify Flow Direction: Ensure installation aligns with the system’s flow requirements.
Perform Initial Testing: Run the system at low pressure to check for leaks or abnormal pressure drops.
Maintaining the filter element ensures long-lasting performance:
Cleaning Methods: Ultrasonic cleaning, backflushing, or approved chemical cleaning solutions suitable for stainless steel.
Inspection: Regularly check pleats, mesh, end caps, and support cores for wear or damage.
Replacement: Replace the element if structural damage, severe clogging, or corrosion is detected.
Handling: Avoid compressing, bending, or dropping the filter element during maintenance.
Documentation: Keep records of inspections, cleanings, and replacements for performance tracking.
Users have consistently reported:
High Filtration Efficiency: Captures fine particles effectively, protecting downstream equipment.
Durability: Long-lasting performance even in high-temperature and high-pressure conditions.
Ease of Maintenance: Simple cleaning and reinstallation procedures reduce downtime.
Versatility: Works reliably across various industries and applications.
Cost Savings: Reusable design reduces frequent replacements and operational costs.
| Issue | Possible Cause | Solution |
|---|---|---|
| High Pressure Drop | Clogged pleats or mesh debris | Clean or replace filter element |
| Reduced Filtration Efficiency | Misaligned pleats or damaged mesh | Inspect and reinstall correctly |
| Leakage Around End Caps | Worn gaskets or improper sealing | Replace gaskets and reseal |
| Structural Deformation | Excessive pressure or mishandling | Verify operating pressure and handle carefully |
| Flow Reduction | Accumulated contaminants | Clean or replace element |
To maintain optimal condition before installation:
Clean Environment: Store in a dust-free, contaminant-free area.
Dry Conditions: Avoid moisture to prevent corrosion.
Temperature Control: Keep at moderate temperatures; avoid extremes.
Protective Packaging: Maintain original packaging or use protective covers.
Avoid Heavy Loads: Do not place heavy items on stored filter elements.
The High-Precision Stainless Steel Filter Element with Protective Mesh combines robust construction, precise filtration, and protective design to deliver superior performance in demanding industrial environments. With its durable stainless steel construction, protective mesh, and versatile applications, it ensures long-term reliability, reduced maintenance, and environmental compliance.
Following proper installation, maintenance, and storage practices enhances performance, prolongs service life, and ensures that critical industrial systems operate efficiently and safely. Ideal for chemical, petrochemical, power generation, HVAC, and food processing applications, this filter element is a high-precision, cost-effective, and environmentally responsible filtration solution.
