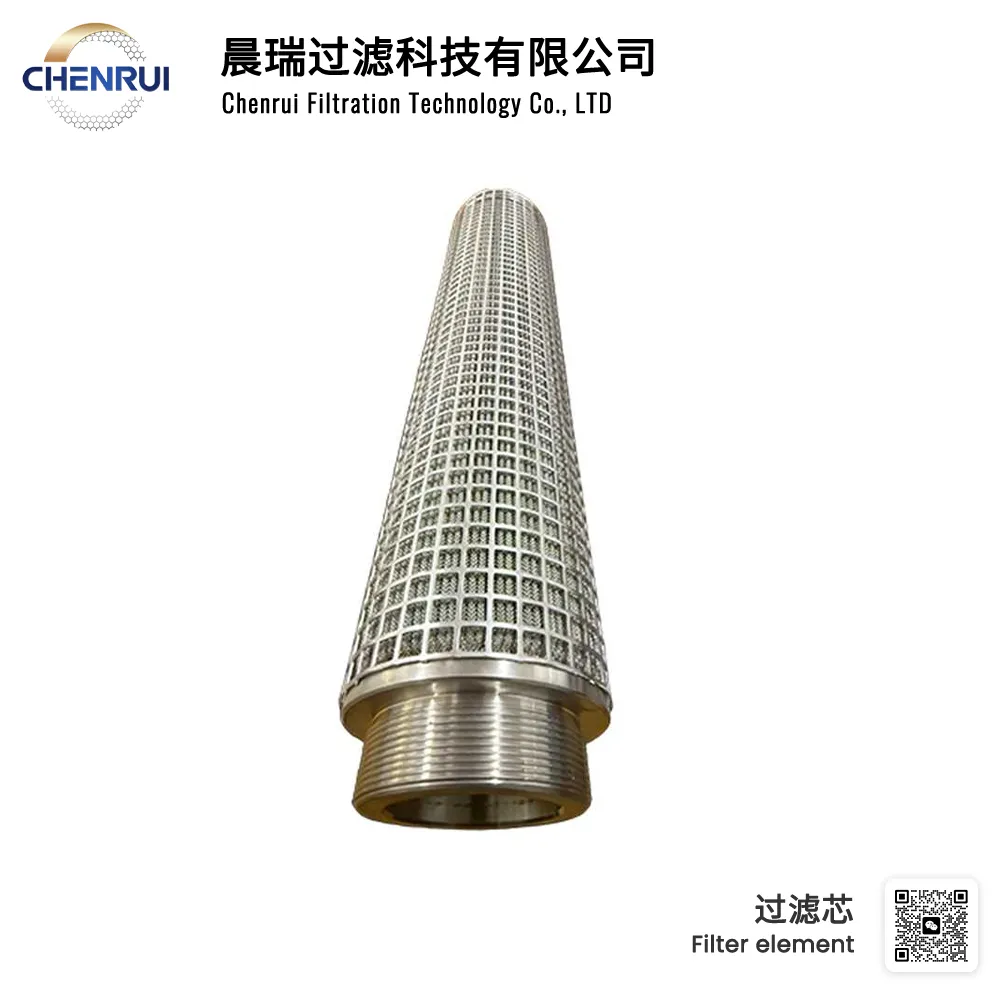

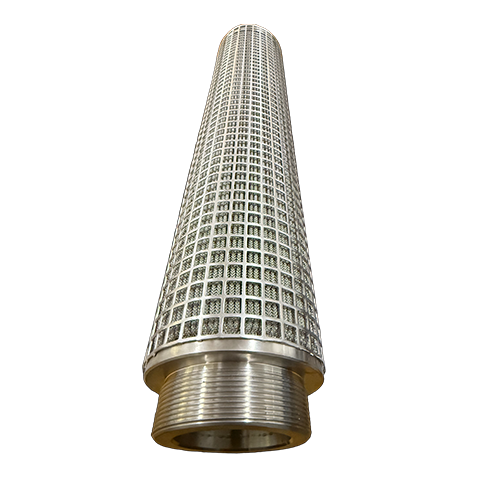

304 stainless steel filter element with Protective Mesh
The 304 Stainless Steel Filter Element with Protective Mesh is a high-performance industrial filtration solution designed to deliver durability, reliability, and exceptional particle capture efficiency. Constructed from premium 304 stainless steel, this filter element integrates a protective mesh layer that shields the pleated filter media from mechanical damage, ensuring long-term stability and consistent filtration performance.
Engineered for use in chemical processing, petrochemical industries, power generation, HVAC systems, and high-temperature liquid or gas filtration, this filter element provides outstanding protection for critical equipment while minimizing maintenance requirements. Its robust construction and versatile design make it suitable for a wide range of industrial applications, enhancing operational reliability and reducing downtime.
Durable Stainless Steel Construction: Premium 304 stainless steel provides resistance to corrosion, heat, and mechanical stress.
Protective Mesh Layer: Shields pleated media from damage, maintaining structural integrity under high-pressure or high-temperature conditions.
High Filtration Efficiency: Pleated design increases surface area, capturing fine particles effectively.
Versatile Applications: Suitable for both Liquid and Gas Filtration across multiple industries.
Easy Maintenance: Designed for straightforward cleaning and reinstallation.
Reusable: Capable of multiple cleanings, reducing replacement costs.
Compact and Lightweight: Split or standard designs allow easy handling and installation.
| Parameter | Specification Options |
|---|---|
| Material | 304 Stainless Steel |
| Filtration Type | Pleated Filter with Protective Mesh |
| Micron Rating | 1 – 100 μm (customizable) |
| Outer Diameter | 50 – 300 mm (customizable) |
| Length | 100 – 1000 mm (customizable) |
| Operating Temperature | -20°C to 250°C |
| Maximum Pressure | 10 – 30 bar |
| Flow Capacity | 50 – 5000 L/min |
| Applications | Chemical, petrochemical, power plants, HVAC, food processing |
Custom sizes, micron ratings, and flow capacities are available to meet specific industrial needs.
The 304 Stainless Steel Filter Element with Protective Mesh consists of the following key components:
| Component | Description |
|---|---|
| Filter Media | High-precision pleated 304 stainless steel sheets for optimal particle removal |
| Protective Mesh | Stainless steel mesh overlay that prevents mechanical damage to the pleats |
| End Caps | Stainless steel end caps provide structural stability and prevent bypass |
| Support Core | Reinforced internal core maintains integrity under high pressure and temperature |
| Outer Cage/Frame | Protects pleats and mesh from external mechanical stress |
| Optional Gaskets | Ensures tight sealing in filter housings |
Optional accessories, including clamps, brackets, or protective covers, are available for enhanced convenience.
High-Efficiency Filtration: Captures fine particles to protect downstream equipment.
Mechanical Protection: The protective mesh prevents damage during installation, operation, or cleaning.
Corrosion Resistance: Stainless steel construction ensures long-term durability in harsh chemical and industrial environments.
High-Temperature Capability: Operates reliably in elevated temperature applications without deforming or losing performance.
Easy Handling: Lightweight and modular design facilitates installation, removal, and cleaning.
Cost-Effective: Reusable design reduces replacement frequency and maintenance costs.
Versatile Industrial Applications: Suitable for both liquid and gas filtration across multiple sectors, including chemicals, petrochemicals, HVAC systems, and food and beverage processing.
Proper installation is critical for optimal filtration performance:
Inspect Filter Housing: Ensure the housing is compatible and free of debris.
Check Seals and Gaskets: Verify all gaskets are intact and correctly positioned.
Install Filter Element: Insert the filter element, ensuring the protective mesh is oriented correctly to shield pleats.
Secure End Caps and Housing: Tighten clamps or brackets without over-tightening to avoid damaging the pleats.
Verify Flow Direction: Confirm that installation matches the system’s flow specifications.
Conduct Initial Testing: Run the system at low pressure to check for leaks or abnormal pressure drops.
Regular maintenance ensures long-lasting performance:
Cleaning: Ultrasonic cleaning, backflushing, or approved chemical cleaning solutions suitable for stainless steel are recommended.
Inspection: Periodically check pleats, mesh, end caps, and support cores for damage or wear.
Replacement: Replace the filter element if severe clogging, structural damage, or corrosion is detected.
Handling: Avoid compressing, bending, or dropping the element during maintenance or installation.
Documentation: Maintain records of cleaning, inspections, and replacements for performance tracking.
The 304 Stainless Steel Filter Element with Protective Mesh complies with multiple international standards to ensure reliability and safety:
| Certification / Standard | Description |
|---|---|
| ISO 9001 | Quality management system compliance |
| ASME Standards | Pressure vessel and industrial equipment standards |
| FDA / Food-Grade Compliance | Optional for food and beverage applications |
| ASTM A240 / A480 | Material standards for stainless steel |
| CE Marking | European safety and performance compliance |
Compliance with these standards ensures consistent quality, safety, and compatibility in industrial applications.
| Issue | Possible Cause | Solution |
|---|---|---|
| High Pressure Drop | Clogged pleats or mesh debris | Clean or replace filter element |
| Reduced Filtration Efficiency | Misaligned pleats or damaged mesh | Inspect and reinstall properly |
| Leakage Around End Caps | Worn gaskets or improper sealing | Replace gaskets and reseal |
| Structural Deformation | Excessive pressure or mishandling | Verify operating pressure and handle carefully |
| Flow Reduction | Accumulated contaminants | Clean or replace element |
To preserve the filter element before installation:
Clean Environment: Store in a dust-free, contaminant-free area.
Dry Conditions: Avoid exposure to moisture to prevent corrosion.
Temperature Control: Store at moderate temperatures, avoiding extreme heat or cold.
Protective Packaging: Maintain original packaging or protective covers to prevent mechanical damage.
Avoid Heavy Loads: Do not place heavy items on top of the stored filter element.
The 304 Stainless Steel Filter Element with Protective Mesh is suitable for a wide range of industrial applications:
Chemical Industry: Filtration of acids, alkalis, solvents, and other chemicals.
Petrochemical: Protects pipelines and equipment from fine particles and contaminants.
Power Generation: Cooling and process fluid filtration in power plants.
HVAC Systems: High-efficiency air filtration for industrial air handling units.
Food and Beverage: Ensures clean and safe filtration for liquid processing under stringent hygiene standards.
The 304 Stainless Steel Filter Element with Protective Mesh offers a robust, reliable, and high-performance solution for industrial filtration. Its combination of pleated stainless steel media and a protective mesh layer ensures long-term durability, high filtration efficiency, and protection against mechanical damage.
By following proper installation, maintenance, and storage practices, users can maximize performance, extend service life, and maintain equipment reliability. This filter element is an ideal choice for chemical, petrochemical, power generation, HVAC, and food processing industries, providing a cost-effective, reusable, and high-performance filtration solution for demanding industrial environments.
