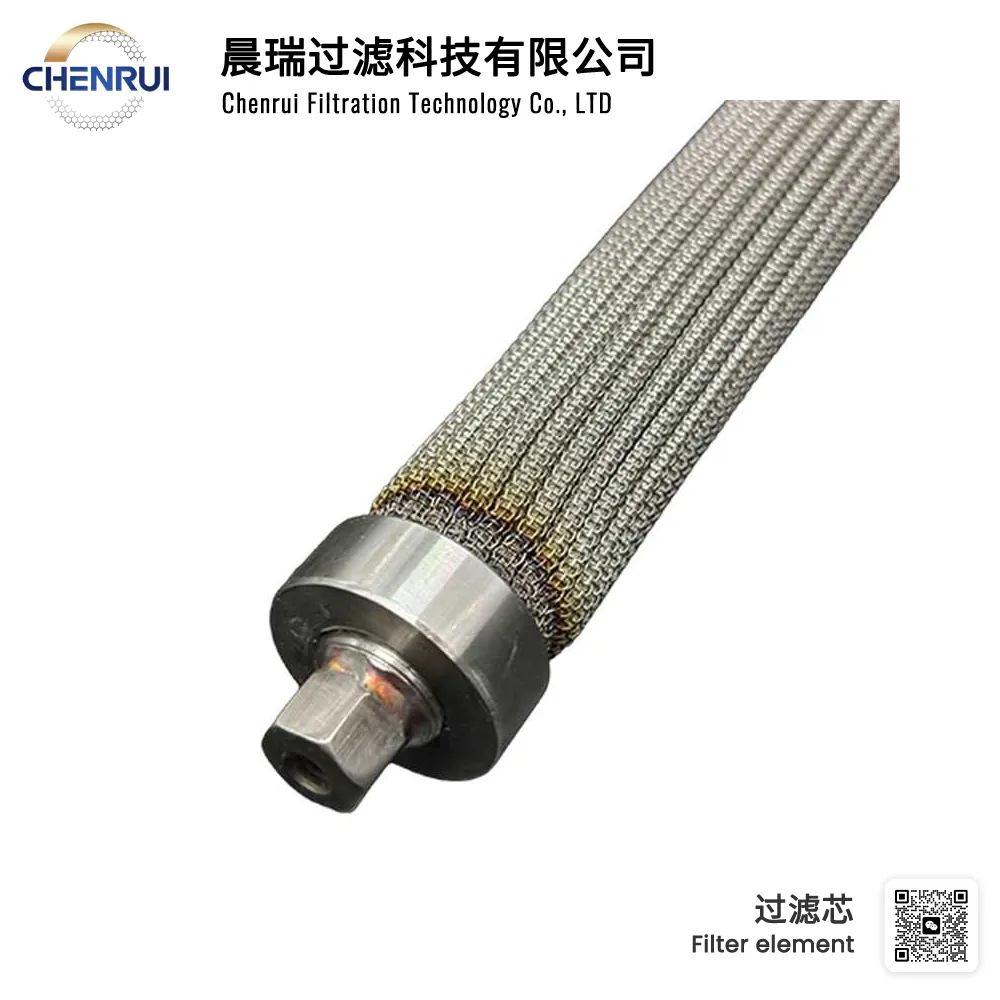

High-Precision 304 stainless steel pleated filter element
The High-Precision 304 Stainless Steel Pleated Filter Element is a high-performance filtration solution engineered for industrial and commercial applications requiring durability, efficiency, and precision. Constructed from premium 304 stainless steel, this filter element combines robust corrosion resistance with superior particle retention, making it ideal for industries where clean air or fluid flow is critical.
Its pleated design maximizes the filtration surface area while maintaining optimal flow rates, offering reliable performance in chemical processing, water treatment, food and beverage production, pharmaceutical manufacturing, and HVAC systems. Designed for long-term use, this filter element is reusable, easy to maintain, and environmentally friendly, ensuring cost-effective operation and reduced waste.
Key features of the High-Precision 304 Stainless Steel Pleated Filter Element include:
Premium Stainless Steel Construction: Made from 304 stainless steel for outstanding corrosion resistance and mechanical strength.
High-Precision Pleated Design: Maximizes filtration surface area, improving particle capture efficiency.
Customizable Sizes and Micron Ratings: Available in various diameters, lengths, and micron levels for specific applications.
Durable End Caps and Frames: Prevents leakage and maintains structural integrity under pressure.
Reusable and Cleanable: Easy to clean without compromising performance, suitable for repeated use.
The filter element comprises the following critical components:
Filter Media: High-precision pleated 304 stainless steel sheets forming the primary filtration surface.
End Caps: Welded or mechanically sealed stainless steel caps to prevent bypass.
Support Core: Stainless steel inner core to maintain pleat structure under high pressure.
Outer Cage/Frame: Protects the pleated media from mechanical damage.
Gaskets (Optional): Ensure a tight seal within the filter housing.
| Parameter | Specification Options |
|---|---|
| Material | 304 Stainless Steel |
| Filtration Type | Pleated |
| Micron Rating | 1 – 100 μm (customizable) |
| Outer Diameter | 50 – 300 mm (customizable) |
| Length | 100 – 1000 mm (customizable) |
| Operating Temperature | -20°C to 250°C |
| Maximum Pressure | 10 – 30 bar |
| Flow Capacity | 50 – 5000 L/min |
| Applications | Chemical, pharmaceutical, food & beverage, water treatment, HVAC |
Proper installation is critical to ensure optimal performance:
Preparation: Clean the filter housing thoroughly and verify that the dimensions match the filter element.
Orientation: Ensure correct flow direction according to markings on the filter element.
Sealing: Check gaskets for damage to prevent leakage.
Insertion: Carefully insert the filter element, avoiding bending or compressing the pleats.
System Start-Up: Gradually pressurize the system and inspect for leaks or abnormal pressure drops.
The High-Precision 304 Stainless Steel Pleated Filter Element is suitable for a wide range of industries:
Chemical Processing: Protects pipelines and equipment from particulate contamination.
Pharmaceutical Manufacturing: Ensures clean air and fluid flow in sensitive production processes.
Food & Beverage Production: Maintains hygiene standards and prevents cross-contamination.
Water and Wastewater Treatment: Effectively removes fine particles from liquids.
HVAC Systems: Industrial and commercial air filtration to maintain air quality and temperature control.
Maintaining the filter element properly ensures long-term efficiency:
Routine Inspection: Check for physical damage, corrosion, or contamination every 1–3 months.
Cleaning: Use compressed air, ultrasonic cleaning, or approved chemical solutions suitable for stainless steel.
Replacement: Replace the element when pressure drop exceeds recommended limits or if physical damage is detected.
Flow Monitoring: Regularly monitor flow rate and pressure drop to determine cleaning or replacement schedules.
Handling: Avoid bending or compressing pleats during installation or maintenance.
Customers across multiple industries report high satisfaction with the High-Precision 304 Stainless Steel Pleated Filter Element:
Chemical Plant Operators: “The filter element consistently removes fine particles, protecting our sensitive equipment from contamination.”
Food & Beverage Manufacturers: “Its reusable design saves costs while maintaining high hygiene standards.”
Water Treatment Facilities: “Pressure drop remains stable even after repeated cleaning cycles, making maintenance straightforward.”
Pharmaceutical Users: “We rely on its precision and stainless steel construction for clean, safe processing environments.”
The High-Precision 304 Stainless Steel Pleated Filter Element is backed by a comprehensive quality guarantee:
Warranty Period: Typically 12–24 months, depending on application and usage conditions.
Defect Coverage: Covers manufacturing defects and material failures.
Replacement Policy: Faulty elements can be replaced free of charge within the warranty period.
Quality Standards: Manufactured in compliance with ISO 9001 and relevant industry standards.
Documentation: Comes with technical datasheets, inspection reports, and maintenance guidelines.
The filter element supports sustainable practices:
Reusable Design: Reduces operational waste by allowing multiple cleaning cycles.
Recyclable Materials: Stainless steel components are fully recyclable.
Low Environmental Impact: Manufacturing follows environmental regulations to minimize pollution.
Food-Grade Compatibility: Safe for applications requiring strict hygiene standards.
| Issue | Possible Cause | Recommended Solution |
|---|---|---|
| High Pressure Drop | Filter clogged with particles | Clean or replace element |
| Reduced Filtration Efficiency | Damaged pleats or improper installation | Inspect media, reinstall properly |
| Leakage Around End Caps | Worn or missing gaskets | Replace gaskets and reseal |
| Element Deformation | Excessive pressure or mishandling | Verify pressure rating and handle carefully |
| Flow Reduction | Contaminant buildup | Perform cleaning or replace element |
High Precision Filtration: Pleated design maximizes surface area for superior particle retention.
Corrosion Resistance: 304 stainless steel resists chemicals, moisture, and high temperatures.
Durable Construction: Welded end caps and reinforced cores prevent deformation.
Reusable and Cost-Effective: Easy cleaning extends service life and reduces operating costs.
Wide Industrial Application: Compatible with chemical, pharmaceutical, food, water, and HVAC systems.
Consistent Performance: Maintains flow rate and filtration efficiency over long-term use.
The High-Precision 304 Stainless Steel Pleated Filter Element is a robust, efficient, and environmentally conscious filtration solution. With its durable stainless steel construction, precision pleating, and reusable design, it provides long-term performance for a wide range of industrial and commercial applications. Following proper installation, maintenance, and storage practices ensures reliable filtration, reduced operational costs, and compliance with industry standards.
