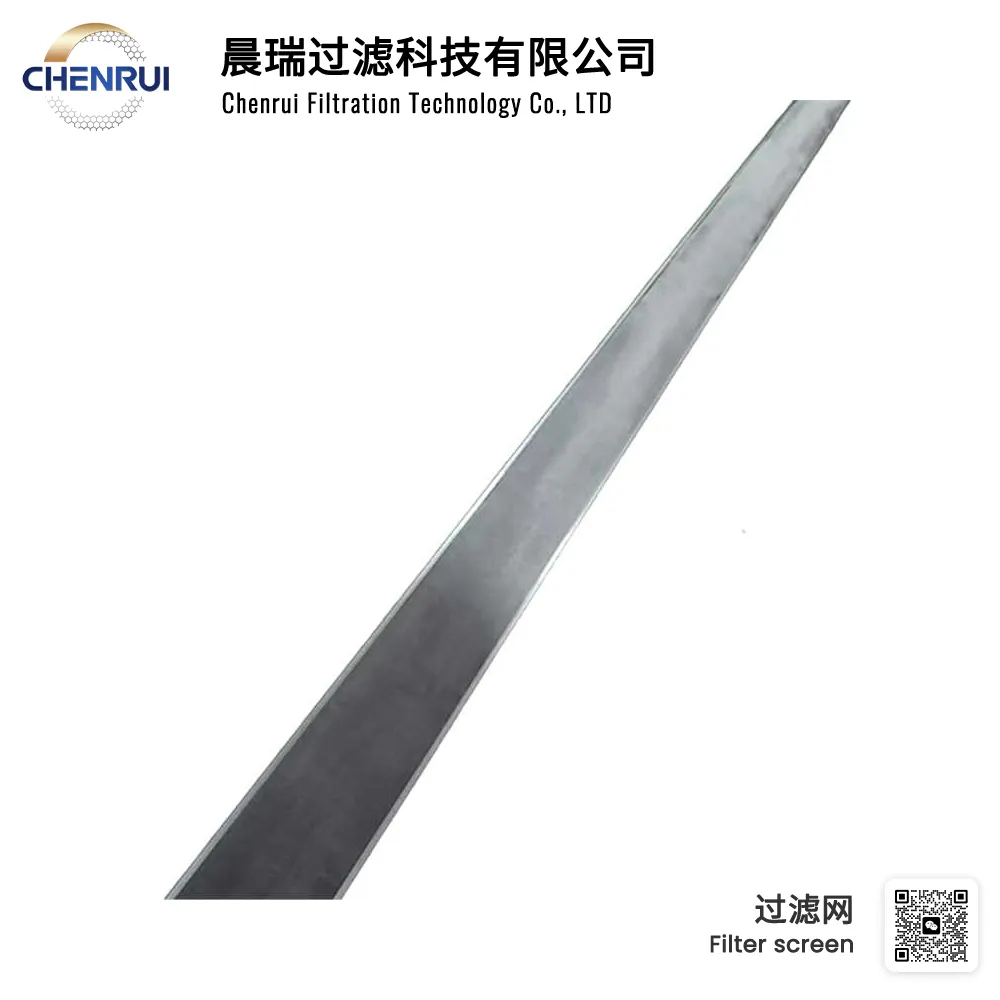

Precision Aperture Single-Piece Filter

Introduction

The Precision Aperture Single-Piece Filter is a high-performance filtration component designed for applications requiring strict air quality and particle control. Its single-piece construction ensures stability, consistent airflow, and reliable filtration efficiency, making it ideal for industries such as pharmaceuticals, electronics manufacturing, laboratories, and HVAC systems.

With rising standards in cleanroom environments and industrial air filtration, precision aperture filters have become essential for ensuring operational safety, product quality, and compliance with regulatory standards.

Product Overview

Precision aperture single-piece filters are engineered to remove fine dust, micro-particles, and airborne contaminants effectively. The precision aperture design provides uniform filtration across the entire surface, preventing bypass and ensuring consistent performance. High-quality materials, combined with robust construction, allow the filter to withstand high airflow rates and maintain efficiency over extended periods.

Key benefits include:

• High filtration accuracy: Captures fine dust and contaminants down to micrometer sizes.

• Durable construction: Resistant to deformation and mechanical stress.

• Stable airflow: Ensures low pressure drop for energy-efficient operation.

• Easy maintenance: Single-piece design simplifies installation and replacement.

Product Specifications Table

Below is a standard parameter table for precision aperture single-piece filters. Custom options are available based on project requirements.

Installation Steps

Proper installation is essential to achieve optimal filtration efficiency and performance. Follow these steps:

1. Preparation

• Turn off the system before beginning installation.

• Verify that the filter size matches the equipment specifications.

2. Remove Old Filter

• Carefully remove the existing filter from the housing.

• Dispose of the old filter according to local environmental regulations.

3. Clean Filter Housing

• Remove dust, debris, or any residue from the filter compartment.

• Inspect the housing for any damage or blockages.

4. Install New Filter

• Insert the precision aperture single-piece filter, ensuring the airflow direction arrow aligns with the system.

• Make sure the filter is seated tightly to prevent air bypass.

5. System Check

• Close the filter compartment securely.

• Restart the system and verify airflow and pressure drop.

Usage Precautions

To maximize performance and lifespan, users should follow these precautions:

1. Avoid Overloading

• Do not exceed the designed airflow or particle load. Excessive loading may damage the filter.

2. Regular Maintenance

• Inspect filters periodically for dust accumulation.

• Replace the filter when reaching the end of its service life or when performance drops.

3. Correct Environment

• Ensure the filter operates within its temperature and humidity specifications.

• Avoid exposure to corrosive gases or liquids unless the filter is rated for such conditions.

4. Proper Handling

• Handle filters carefully to prevent damage to the media or frame.

• Avoid touching the filtration surface directly.

Operation Guidelines

1. Airflow Consideration

• Ensure system airflow is within the specified range for the filter grade.

• Excessive airflow may reduce filtration efficiency and cause premature wear.

2. Pressure Monitoring

• Monitor system pressure drop regularly to determine when the filter requires replacement.

3. Cleaning and Replacement

• Do not attempt to clean the filter unless it is specifically designed for washable use.

• Replace the filter with a new unit for optimal performance.

Certification and Standards

Precision aperture single-piece filters are manufactured in compliance with international standards, ensuring quality and safety:

• ISO 9001: Quality management system certification.

• ISO 14644: Compliance for cleanroom and controlled environment filtration.

• EN 1822: High-efficiency particulate air (HEPA) filter testing standard.

• RoHS Compliant: Free of hazardous substances.

These certifications guarantee the filter’s performance, reliability, and environmental compliance.

Applications

The precision aperture single-piece filter is widely used in:

• Cleanrooms: Pharmaceuticals, electronics, laboratories, and research facilities.

• HVAC Systems: Commercial buildings, hospitals, and office spaces.

• Industrial Dust Removal: Factories, production lines, and workshops.

• Air Purifiers: Ensuring clean and contaminant-free indoor air.

Advantages

• High Precision Filtration: Captures fine particles down to micrometer levels.

• Durable Construction: Long-lasting and resistant to environmental stress.

• Easy Installation: Single-piece design reduces installation time and effort.

• Reliable Performance: Maintains consistent airflow and efficiency over time.

• Compliance Certified: Meets ISO, EN, and other international standards.

Conclusion

The Precision Aperture Single-Piece Filter is an essential component for achieving high air quality and particle control in various industrial, commercial, and laboratory applications. Its precision design, durability, and certified performance make it a reliable solution for maintaining clean, safe, and efficient environments. Proper installation, regular maintenance, and adherence to operational guidelines ensure maximum efficiency and longevity of the filter, making it a cost-effective choice for professional air filtration systems.
