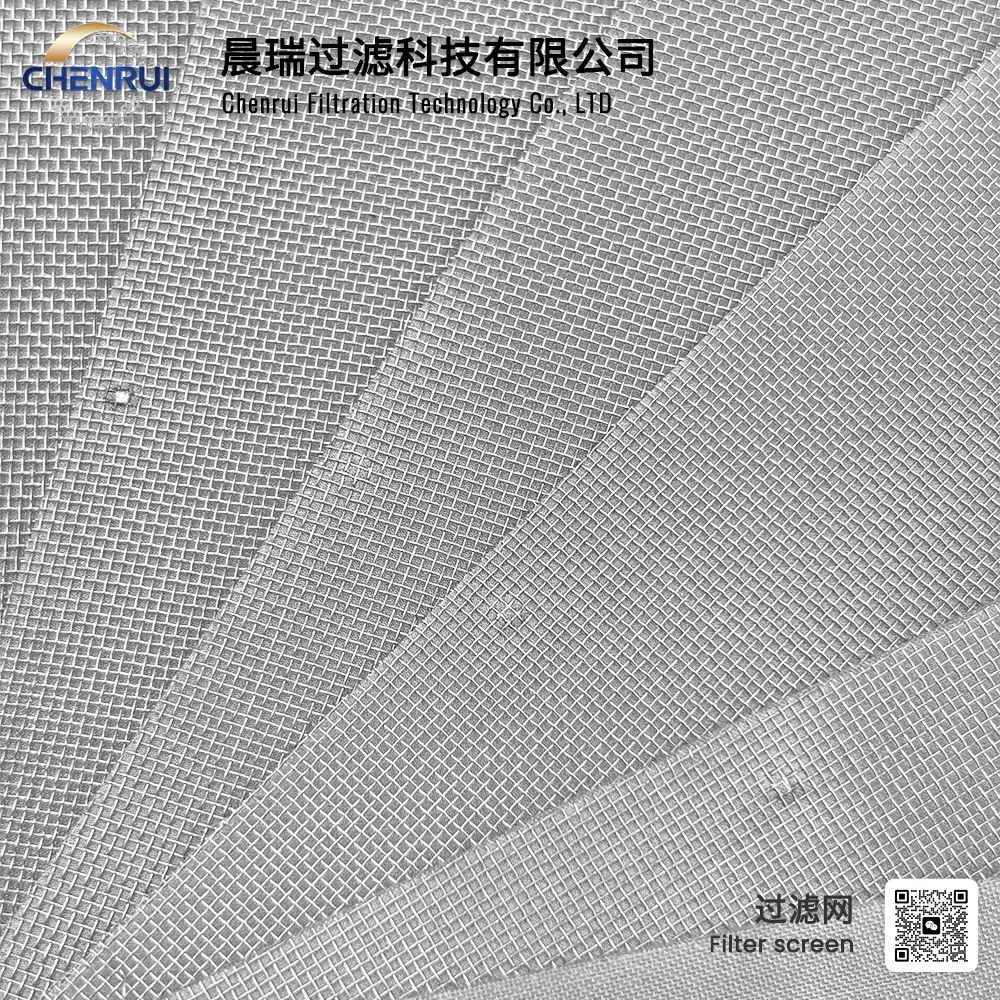

Non-frame High Performance Filter Screen for the Nonwoven Fabric Industry
The Non-frame High Performance Filter Screen is a critical solution for the nonwoven fabric industry, offering superior filtration without the need for a supporting frame. Its innovative design ensures high efficiency in particle separation, stable airflow, and consistent production quality. This comprehensive guide covers the filter’s technical advantages, maintenance requirements, troubleshooting methods, and core benefits, providing industry professionals with practical insights for optimized operations.
The non-frame high performance filter screen brings multiple benefits that make it indispensable in nonwoven fabric manufacturing:
| Core Advantage | Description |
|---|---|
| Frame-Free Design | Eliminates the need for external frames, reducing installation complexity and cost. |
| High Filtration Efficiency | Captures ultra-fine particles, ensuring high-quality nonwoven fabric output. |
| Durable Materials | Resistant to wear, heat, and chemical exposure, extending service life. |
| Easy Maintenance | Simplified cleaning and inspection processes reduce downtime. |
| Energy Saving | Optimized airflow design minimizes pressure drop and energy consumption. |
The technical features of the non-frame high performance filter screen provide unmatched operational efficiency:
Advanced Fiber Technology
Uses high-strength fibers with ultrafine pores.
Ensures precise particle capture without compromising airflow.
Wear and Corrosion Resistance
Designed for harsh industrial environments.
Maintains structural integrity under continuous high-speed operations.
Thermal Stability
Can withstand high-temperature processes commonly found in nonwoven production.
Maintains consistent filtration efficiency even under elevated temperatures.
Customizable Dimensions
Available in multiple sizes to fit different production lines.
Facilitates easy integration into existing machinery.
Non-frame high performance filter screens are used across various nonwoven processes:
Air Filtration: Removes dust and fine fibers during dry-laid processes.
Liquid Filtration: Captures contaminants in wet-laid processes.
Specialty Nonwoven Production: Ensures uniform fiber distribution for medical, hygiene, and industrial fabrics.
Proper installation ensures optimal performance and durability.
Inspect the filter screen for damage or deformities.
Verify dimensions and compatibility with the production line.
Align the filter screen with airflow or liquid flow direction.
Ensure that it sits flat without folds or bends.
Use clamps or supports as necessary, though the design does not require a traditional frame.
Ensure edges are sealed properly to prevent bypass flow.
Gradually introduce air or liquid flow.
Check for leakage or pressure drop anomalies.
Tip: Always follow manufacturer guidelines to maximize filter life and performance.
Regular maintenance is essential to extend filter life and maintain efficiency.
Weekly: Visual inspection for clogging or damage.
Monthly: Measure airflow or liquid flow pressure drop.
Quarterly: Comprehensive inspection for structural integrity.
Compressed Air Cleaning: Remove dust and loose particles.
Water Rinse: Gentle rinsing with clean water for soluble debris.
Mild Chemical Wash: For stubborn contaminants, use compatible cleaning agents.
Typical lifespan ranges from 12–24 months depending on usage and operating conditions.
Replace earlier if wear, pore blockage, or structural compromise is observed.
| Issue | Possible Cause | Recommended Solution |
|---|---|---|
| Reduced airflow | Filter clogged with dust | Perform air or water cleaning |
| Irregular filtration | Improper installation | Re-align filter and seal edges |
| Premature wear | Abrasive particles or chemical exposure | Upgrade to wear-resistant filter version |
| Pressure drop fluctuations | System misalignment | Check mounting and ensure proper flow path |
Enhancements can improve longevity and efficiency:
High-Density Fiber Layers: Improves ultra-fine particle filtration.
Coated Fibers: Anti-static or hydrophobic coatings for specialized processes.
Custom Shapes: Adaptable to non-standard machinery dimensions.
Modular Design: Allows quick replacement with minimal downtime.
| Test Type | Parameter |
|---|---|
| Filtration Efficiency | >99% for micron-level particles |
| Tensile Strength | ISO 527 standards compliance |
| Thermal Resistance | Up to 200°C |
| Chemical Compatibility | Resistant to common nonwoven chemicals |
| Pressure Drop | Within manufacturer-specified range |
Regular testing ensures consistent high-quality output and reliability.
The non-frame high performance filter screen contributes to sustainable manufacturing:
Reduces energy consumption through optimized airflow.
Minimizes industrial waste due to long service life.
Supports clean manufacturing practices by reducing airborne and liquid contaminants.
Improves overall production efficiency, saving operational costs.
The Non-frame High Performance Filter Screen is a pivotal technology for the nonwoven fabric industry. Its frame-free design, exceptional filtration efficiency, durability, and energy-saving features make it an ideal solution for diverse applications. Proper installation, routine maintenance, and periodic upgrades enhance its performance and longevity, ensuring high-quality nonwoven products and efficient industrial operations. Manufacturers adopting this filter screen can achieve consistent product quality, lower energy costs, and sustainable production processes.
