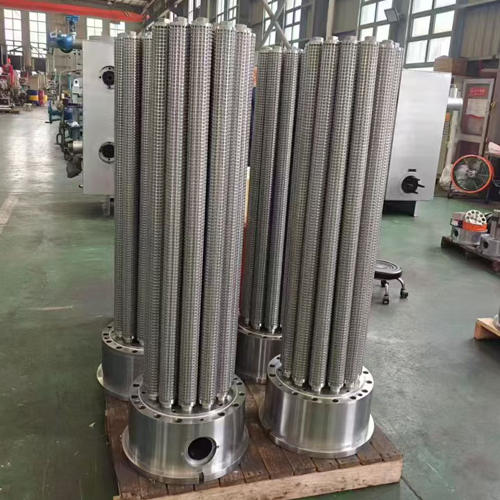

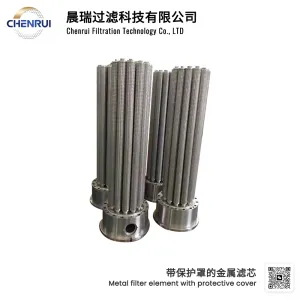

Metal Filter Element with Protective Cover: Comprehensive Guide
Metal filter elements with protective covers are high-performance filtration components designed for industrial systems where reliability and durability are critical. These filters combine robust metal mesh with a protective cover to prevent physical damage, extend service life, and ensure consistent filtration efficiency. They are widely used in hydraulic systems, fuel and oil filtration, chemical processing, water treatment, and pneumatic systems.
The protective cover enhances structural integrity, prevents contamination of the filter media, and simplifies handling and installation. This guide provides a detailed overview of product features, applications, quality inspection, and key functions, offering a comprehensive resource for engineers, designers, and industrial users.
Metal filter elements with protective covers are engineered to deliver superior performance and longevity.
| Feature | Description |
|---|---|
| Protective Cover | Shields filter media from mechanical damage and contamination during installation and operation. |
| High-Quality Metal Mesh | Stainless steel or alloy mesh ensures durability, corrosion resistance, and high filtration precision. |
| Reusability | Many metal filter elements can be cleaned and reused, reducing operational costs. |
| High Flow Capacity | Designed for minimal pressure drop while maintaining excellent filtration efficiency. |
| Temperature and Pressure Resistance | Suitable for harsh operating conditions with stable performance. |
| Versatile Design | Compatible with various system configurations and industrial applications. |
These highlights make metal filter elements with protective covers an ideal choice for systems requiring both durability and reliable filtration.
These filters are suitable for a wide range of industrial sectors:
Hydraulic Systems: Protect pumps, valves, and actuators from particulate contamination.
Fuel Filtration: Ensure clean diesel, gasoline, or aviation fuel for engines and turbines.
Chemical Processing: Withstand aggressive chemicals while maintaining efficient filtration.
Water Treatment: Remove fine particles in industrial and municipal water systems.
Compressed Air Systems: Protect pneumatic tools and machinery from debris and moisture.
Food and Beverage Industry: Stainless steel options comply with hygiene standards for processing fluids.
Their durability, precision, and protective cover make them essential in systems where fluid purity and equipment reliability are critical.
The construction of metal filter elements with protective covers focuses on longevity and reliability:
| Component | Material | Function |
|---|---|---|
| Filter Media | Stainless steel mesh (304/316) or alloy | Captures contaminants and maintains flow efficiency |
| Protective Cover | Perforated stainless steel or metal casing | Prevents mechanical damage and supports structural integrity |
| End Caps | Stainless steel or metal alloys | Provides secure sealing and enhances durability |
| Core Tube | Stainless steel | Ensures rigidity and consistent fluid distribution |
High-quality materials ensure the filter maintains its performance under harsh conditions and frequent maintenance cycles.
Metal filter elements with protective covers provide multiple essential functions for industrial systems:
Filtration Efficiency
Removes particles ranging from 1–50 microns, depending on mesh specification.
Maintains clean fluid flow to prevent system damage.
Durability and Protection
The protective cover safeguards the filter media from physical impacts during installation or operation.
Metal construction resists corrosion, temperature fluctuations, and chemical exposure.
System Reliability
Ensures uninterrupted operation by reducing clogging and pressure drops.
Supports high flow rates for continuous industrial processes.
Reusability and Cost Efficiency
Filters can be cleaned via solvent flushing, ultrasonic cleaning, or backwashing.
Reusable design minimizes replacement frequency and lowers operational costs.
Ensuring high-quality performance requires rigorous quality control:
| Parameter | Standard / Test |
|---|---|
| Filtration Precision | Micron rating verified by particle size testing |
| Material Integrity | ASTM or ISO standard compliance for stainless steel/alloy |
| Flow Rate | Tested under specified pressure drop to ensure performance |
| Corrosion Resistance | Salt spray test (ASTM B117) for durability in harsh conditions |
| Mechanical Strength | Pressure and vibration tests to ensure structural integrity |
| Dimensional Accuracy | Ensures compatibility with system housings and installations |
Quality inspection guarantees that each metal filter element with a protective cover meets industrial specifications and provides reliable, long-term performance.
Proper installation and maintenance maximize performance and service life:
Verify correct filter size, micron rating, and orientation.
Ensure seals and gaskets are properly positioned to prevent leakage.
Avoid applying excessive torque during installation.
| Step | Instruction |
|---|---|
| Inspection | Check for visible damage, clogging, or corrosion. |
| Cleaning | Use compatible solvents, ultrasonic cleaning, or backwashing techniques. |
| Replacement | Replace if structural damage is detected or cleaning fails to restore efficiency. |
| Documentation | Maintain logs to track performance, cleaning cycles, and replacements. |
Routine maintenance and adherence to manufacturer guidelines ensure filters operate efficiently and extend system lifespan.
Safe transportation and storage practices preserve filter integrity:
Transportation: Protect filters from mechanical shocks, moisture, and extreme temperatures. Use rigid packaging and padding.
Storage: Store in a dry, temperature-controlled environment, preferably in original packaging. Avoid stacking heavy items on top to prevent deformation.
Handling: Lift with care, avoid dropping, and prevent contact with corrosive substances.
Proper transportation and storage prevent pre-installation damage and maintain peak performance.
Metal filter elements with protective covers are indispensable components for industrial filtration systems, offering high durability, protection, and reliable performance. Their robust construction, combined with protective casing and precise filtration capabilities, ensures clean fluid flow, reduces system downtime, and extends equipment life.
By following proper installation, maintenance, and storage practices, industries can maximize the value of these filters while ensuring safe and efficient operation across hydraulic, fuel, chemical, water treatment, and pneumatic systems.
High-quality metal filter elements with protective covers provide long-term cost savings, operational efficiency, and enhanced system reliability, making them essential for industrial fluid management.
