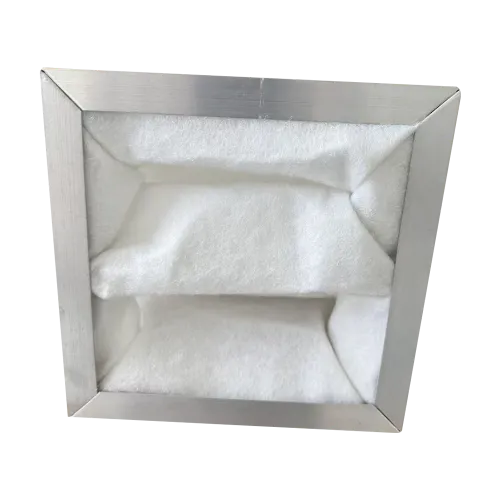

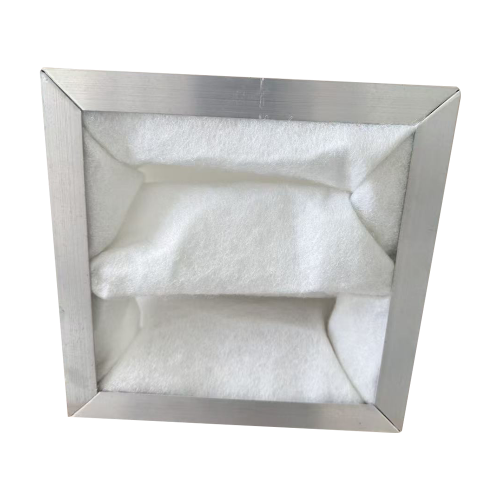

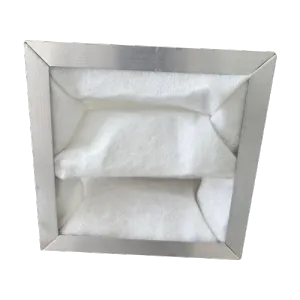

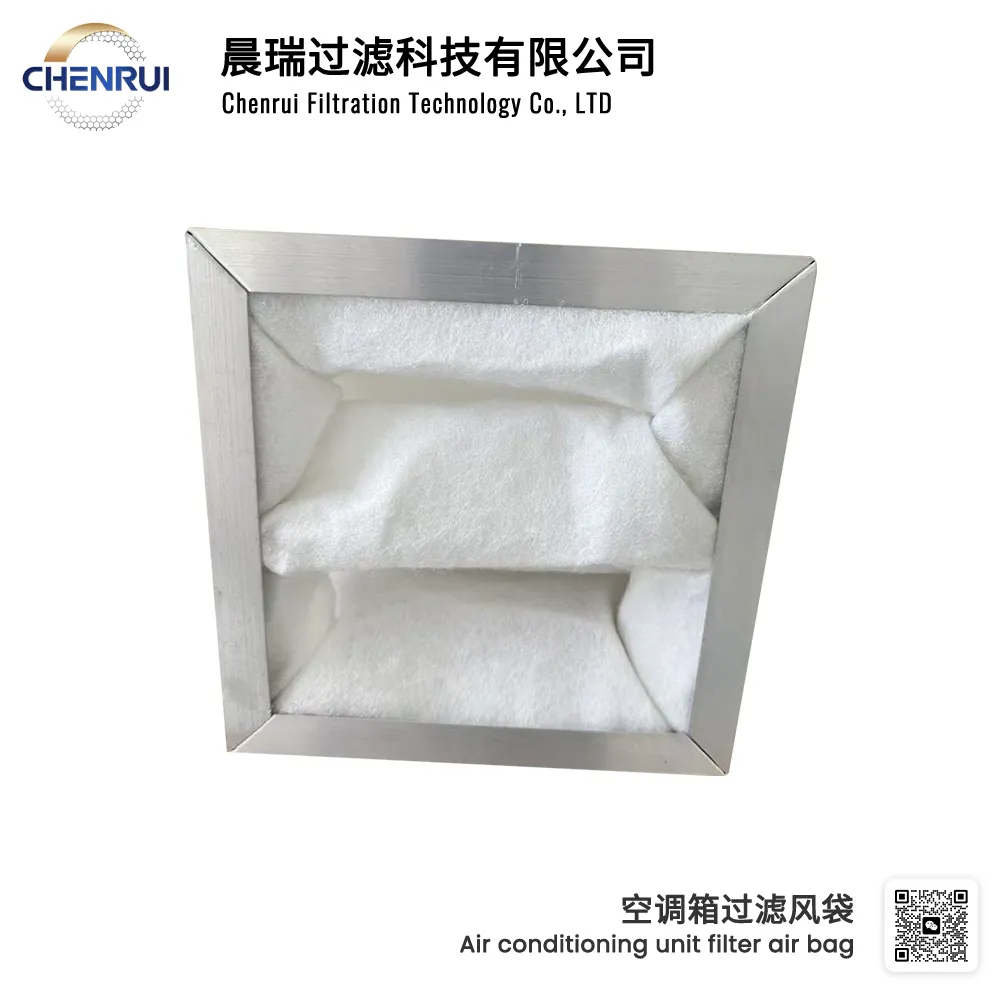

Industrial air conditioning box filter Air Bag
The Industrial Air Conditioning Box Filter Air Bag is a high-performance filtration solution designed for large-scale HVAC systems in industrial, commercial, and institutional settings. Engineered with premium synthetic fibers and reinforced frames, this filter air bag effectively captures dust, debris, pollen, and other airborne contaminants, ensuring clean and safe airflow throughout industrial facilities.
With its robust construction, long service life, and easy maintenance, the industrial air bag filter protects HVAC equipment, improves energy efficiency, and maintains optimal indoor air quality in demanding environments.
The Industrial Air Conditioning Box Filter Air Bag features a multi-pocket air bag design, maximizing filtration surface area while maintaining low airflow resistance. Key components include:
Filter Media: High-quality synthetic fibers or glass fiber media capable of capturing fine dust and airborne particles.
Support Frame: Durable metal or plastic frame ensures structural integrity and proper installation.
Air Bag Pockets: Multiple pockets increase dirt-holding capacity, reducing replacement frequency.
Sealing Gasket: Ensures a tight seal within the air conditioning box to prevent bypass of unfiltered air.
The industrial air bag filter consists of the following essential parts:
Filter Media Panels: Primary filtration component capturing airborne particles.
Frame Assembly: Provides mechanical support and stability inside the HVAC unit.
Air Bag Pockets: Folded or pleated pockets that expand to maximize surface area.
Sealing Gasket: Prevents leakage and ensures all air passes through the filter media.
Fasteners/Clips: Secure the filter in position inside the air conditioning box.
The following table summarizes the technical specifications of the Industrial Air Conditioning Box Filter Air Bag:
| Parameter | Specification Options |
|---|---|
| Filter Media | Synthetic fiber, glass fiber |
| Filtration Efficiency | MERV 8 – MERV 13 (ISO 16890 rating) |
| Frame Material | Galvanized steel, aluminum, or durable plastic |
| Pocket Number | 4 – 12 pockets (customizable) |
| Pocket Depth | 200 – 500 mm |
| Operating Temperature | -20°C to 70°C |
| Airflow Capacity | 500 – 5000 m³/h |
| Dust Holding Capacity | 300 – 1500 g |
| Recommended Service Life | 6 – 12 months (depending on environment) |
| Applications | Factories, warehouses, industrial HVAC systems |
Proper handling during transport ensures the filter maintains its performance and avoids damage.
Keep Upright: Always transport the filter in an upright position to prevent deformation of pockets.
Avoid Heavy Loads: Do not stack heavy objects on top of the filter during shipping.
Protect from Moisture: Use waterproof packaging to prevent moisture exposure and mold growth.
Handle with Care: Avoid dropping or applying excessive pressure to prevent damage to the filter media or frame.
Temperature Control: Ensure the transport environment remains within safe temperature ranges (-20°C to 40°C).
Correct installation is critical for achieving optimal performance:
Turn off the HVAC system before installation.
Remove existing filters and clean the filter compartment.
Verify the filter dimensions and orientation.
Insert the air bag filter into the air conditioning box, ensuring pockets are fully expanded.
Align the frame correctly and secure using fasteners or clips.
Check for a tight seal to prevent air bypass.
Restart the system and confirm proper airflow.
To maintain performance and safety, follow these usage precautions:
Do Not Compress Pockets: Compressed pockets reduce filtration efficiency.
Avoid Moisture Exposure: Keep the filter dry during operation and storage.
Monitor Pressure Drop: Replace the filter if pressure drop exceeds recommended limits.
Regular Inspections: Check for damage, dust accumulation, or leaks every 1–3 months.
Correct Airflow Direction: Follow airflow direction indicators on the filter frame.
Routine maintenance extends filter life and ensures HVAC efficiency:
Inspection: Examine the filter periodically for dust build-up or damage.
Cleaning: Light dust can be removed with low-pressure compressed air; avoid using water unless the manufacturer specifies.
Replacement: Replace the filter at the end of its service life or when a significant pressure drop is observed.
Record-Keeping: Maintain records of maintenance, cleaning, and replacements for quality assurance.
High Filtration Efficiency: Captures dust, pollen, and fine particles effectively.
Durable Construction: Reinforced frame and quality filter media resist wear and deformation.
Energy Efficiency: Optimized pocket design maintains airflow while reducing pressure drop.
Long Service Life: High dirt-holding capacity and robust design minimize replacement frequency.
Versatility: Suitable for industrial, commercial, and specialized HVAC applications.
| Issue | Possible Cause | Recommended Solution |
|---|---|---|
| Reduced Airflow | Clogged pockets | Clean or replace filter |
| Poor Air Quality | Low filtration efficiency | Upgrade filter to higher MERV/ISO rating |
| Mold or Odor | Moisture exposure | Replace filter, inspect HVAC system |
| Filter Damage | Improper handling | Reinstall carefully or replace damaged filter |
| Increased Energy Consumption | Excessive pressure drop | Clean/replace filter, check for blockages |
Proper storage ensures the filter remains in optimal condition:
Dry Environment: Prevent moisture contact to avoid mold and fiber degradation.
Temperature Control: Store within -20°C to 40°C.
Packaging: Keep the filter in original packaging until installation.
Avoid Compression: Do not place heavy objects on the filter.
Sunlight Protection: Keep away from direct sunlight to maintain filter media integrity.
The Industrial Air Conditioning Box Filter Air Bag is ideal for a variety of settings:
Factories and production facilities requiring clean air for machinery and personnel.
Warehouses and storage facilities needing dust control.
Large-scale commercial HVAC systems in shopping centers, hotels, and office buildings.
Healthcare and laboratory environments demanding high indoor air quality standards.
Specialized industrial applications, such as data centers or electronics manufacturing.
The Industrial Air Conditioning Box Filter Air Bag offers a robust, high-efficiency filtration solution for industrial HVAC systems. Its durable construction, high dust-holding capacity, and versatile design ensure optimal airflow, reduced maintenance, and enhanced indoor air quality. By following proper installation, usage precautions, and storage guidelines, this air bag filter provides long-term performance, energy savings, and reliable protection for industrial facilities and commercial buildings alike.
