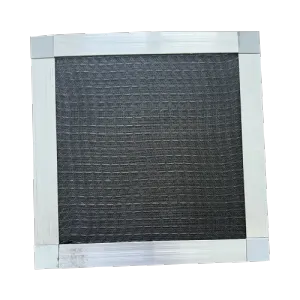

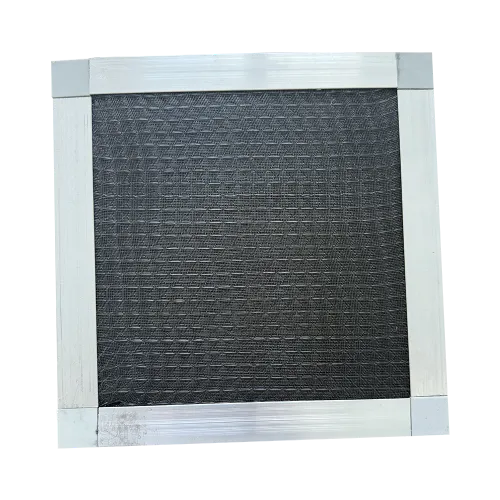

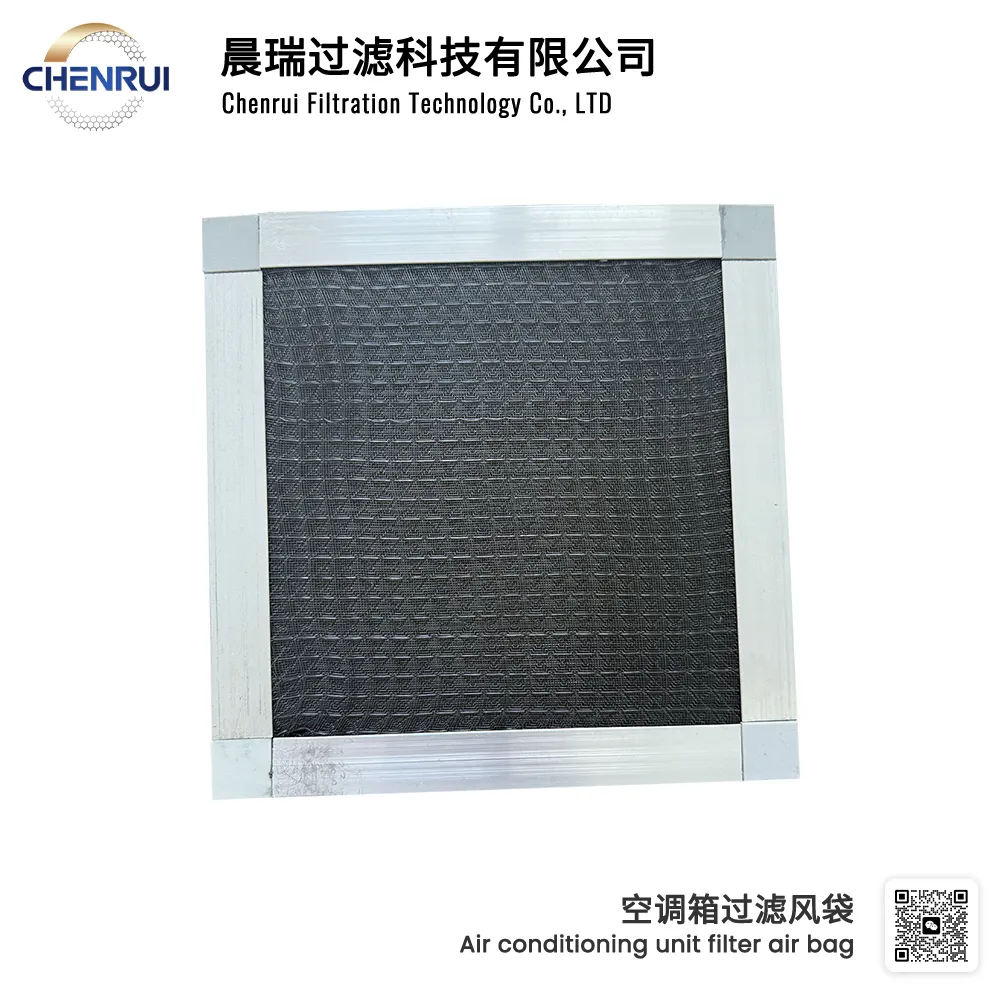

High Efficiency air conditioning box filter Air Bag
The High Efficiency Air Conditioning Box Filter Air Bag is a premium solution designed to optimize airflow, enhance indoor air quality, and protect HVAC systems from dust, pollen, and other airborne particles. Engineered with high-quality synthetic fiber materials, this filter air bag offers exceptional efficiency, durability, and easy maintenance, making it suitable for commercial, industrial, and residential applications.
This product ensures a balance between high filtration performance and minimal airflow resistance, providing long-term protection for air conditioning units while contributing to energy efficiency and healthier indoor environments.
The High Efficiency Air Conditioning Box Filter Air Bag features a pleated or bag-type design that maximizes the surface area for particle capture while maintaining compact dimensions for easy installation. Key components include:
Filter Media: High-quality synthetic fibers capture fine dust, pollen, mold spores, and other airborne contaminants.
Support Frame: Durable metal or plastic frame ensures structural integrity and secure placement inside the air conditioning box.
Air Bag Pockets: Multiple pockets increase surface area, allowing for higher dirt-holding capacity and longer service life.
Sealing Gasket: Ensures a tight seal, preventing bypass of unfiltered air.
The following table outlines the standard specifications for High Efficiency Air Conditioning Box Filter Air Bag:
| Parameter | Specification Options |
|---|---|
| Filter Media | Synthetic fiber, glass fiber |
| Filtration Efficiency | MERV 8 – MERV 13 (or ISO 16890 classification) |
| Frame Material | Galvanized steel, aluminum, or plastic |
| Pocket Number | 4 – 12 pockets (customizable) |
| Pocket Depth | 200 mm – 500 mm |
| Operating Temperature | -20°C to 70°C |
| Airflow Capacity | 500 – 5000 m³/h |
| Dust Holding Capacity | 300 – 1500 g |
| Service Life | 6 – 12 months (depending on usage and environment) |
| Applications | HVAC systems, air handling units, cleanrooms, commercial buildings |
Proper installation ensures optimal filtration performance and prolongs the service life of the air bag filter.
Turn off the HVAC system before installation.
Inspect the air conditioning box for dust, debris, or damage.
Verify filter size and model against specifications.
Open the air conditioning box and remove any old filters.
Check the sealing surfaces and clean them if necessary.
Insert the filter air bag into the box, ensuring the pockets are fully expanded and not compressed.
Align the filter frame with the support slots inside the air box.
Secure the filter using fasteners or clips provided by the manufacturer.
Ensure a tight seal to prevent unfiltered air bypass.
Close the air conditioning box and restart the system.
Upgrading to advanced filter solutions can improve air quality, extend HVAC lifespan, and reduce maintenance costs.
High MERV or ISO Class Filters
Upgrading to filters with higher MERV or ISO 16890 ratings captures finer particles and allergens.
Extended Pocket Filters
Increasing the number or depth of pockets increases dirt-holding capacity and reduces replacement frequency.
Anti-Microbial or Coated Filters
Filters with anti-microbial coatings prevent mold and bacteria growth inside the filter media.
Modular Filter Systems
Flexible designs allow easy integration of additional filter stages for specialized applications, such as chemical or odor removal.
To ensure safety and optimal performance, follow these precautions:
Do Not Compress Pockets: Compressed pockets reduce airflow and filtration efficiency.
Avoid Moisture Contact: Keep the filter dry during storage and installation to prevent mold growth.
Handle With Care: Avoid damaging the filter media or frame during installation.
Check Airflow Direction: Ensure the filter is installed according to the airflow direction indicated on the frame.
Regular Inspection: Monitor for clogging or damage, and replace the filter when needed.
Regular maintenance is essential to maintain efficiency and system performance.
Inspect filters every 1–3 months depending on usage and environment.
Clean surrounding surfaces to prevent additional dust accumulation.
Replace the air bag filter once the pressure drop reaches the recommended limit.
Light dust accumulation can be removed using low-pressure compressed air.
Do not use water or cleaning chemicals on standard synthetic fiber filters.
Ensure the filter is completely dry and free of debris before reinstallation.
| Issue | Possible Cause | Recommended Solution |
|---|---|---|
| Reduced Airflow | Clogged filter pockets | Replace or clean filter |
| Poor Air Quality | Low filtration efficiency | Upgrade to higher MERV/ISO rated filter |
| Mold or Odor | Moisture or contamination | Replace filter, inspect HVAC system for leaks |
| Filter Damage | Improper handling or installation | Reinstall carefully or replace damaged filter |
| Increased Energy Consumption | Excessive pressure drop | Clean/replace filter, check for blockages |
Proper storage ensures the filter maintains performance until installation:
Store in a dry, clean, and well-ventilated area.
Avoid direct sunlight exposure and moisture contact.
Keep the filter in original packaging until use.
Maintain storage temperatures between -20°C and 40°C.
The High Efficiency Air Conditioning Box Filter Air Bag is suitable for various settings:
Commercial Buildings: Offices, shopping centers, hotels.
Industrial Facilities: Factories, warehouses, cleanrooms.
Residential Systems: Central air conditioning systems in apartments and houses.
Healthcare Facilities: Hospitals, laboratories, and clinics requiring high air quality standards.
Specialized Environments: Data centers, server rooms, and pharmaceutical manufacturing.
High Filtration Efficiency: Captures dust, allergens, and fine particles effectively.
Durable Construction: Long-lasting synthetic fiber media and sturdy frames.
Easy Installation: Modular design allows quick replacement and minimal downtime.
Energy Efficiency: Optimized pocket design reduces pressure drop and maintains airflow.
Versatile Applications: Suitable for commercial, industrial, and residential HVAC systems.
Extended Service Life: Upgraded models allow longer intervals between replacements.
The High Efficiency Air Conditioning Box Filter Air Bag is a reliable, high-performance solution for maintaining clean air, protecting HVAC systems, and improving indoor air quality. With proper installation, routine maintenance, and potential upgrades, this filter ensures optimal performance, energy efficiency, and long-term durability. Its robust design, high filtration efficiency, and versatile applications make it an essential component for modern air conditioning systems in commercial, industrial, and residential environments.
