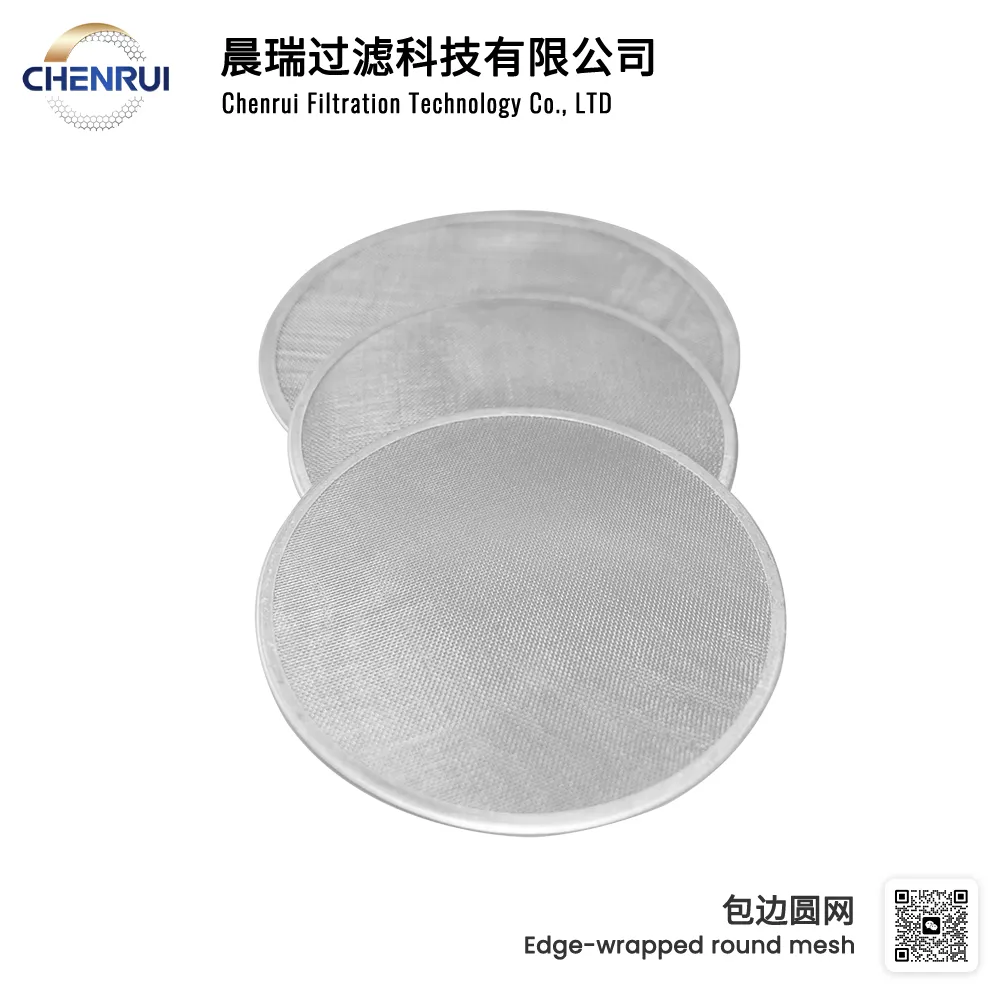

Edge Filter Round Screen for Nonwoven Fabric Industry: Complete Guide
The Edge Filter Round Screen is a critical component in the nonwoven fabric industry, designed to provide efficient filtration, high durability, and consistent airflow. Manufactured from premium stainless steel or reinforced alloys, it can withstand abrasive fibers, high-speed operations, and demanding industrial environments.
This guide covers key features, applications, installation instructions, maintenance, and energy-saving standards, helping manufacturers optimize production efficiency and reduce downtime.
High Durability: Resistant to abrasion from fibers and mechanical stress.
Precise Filtration: Ensures consistent airflow and captures fine fiber particles.
Round Edge Design: Provides structural stability and easy integration into machinery.
Low Maintenance: Minimizes clogging and reduces replacement frequency.
Customizable: Available in multiple diameters, thicknesses, and mesh sizes for various nonwoven production lines.
Spunbond Production Lines: Captures fiber debris and prevents machine contamination.
Meltblown Lines: Ensures uniform airflow for consistent fabric quality.
Carding and Web Formation: Maintains precise filtration for fiber web formation.
Needle-Punched Systems: Protects downstream equipment from fiber accumulation.
| Parameter | Specification | Description |
|---|---|---|
| Material | Stainless Steel 304/316, Reinforced Alloy | High wear resistance for abrasive fiber handling |
| Mesh Size | 50–400 microns | Ensures precise filtration for nonwoven applications |
| Diameter | 50–500 mm | Compatible with standard industrial housings |
| Thickness | 0.3–2 mm | Provides mechanical stability under high-speed operations |
| Operating Temperature | Up to 250°C | Suitable for high-temperature processing lines |
| Pressure Rating | Up to 10 MPa | Handles high airflow and fluid systems |
| Edge Type | Rounded / Polished | Prevents mechanical damage and ensures easy installation |
Avoid Excessive Pressure: Do not exceed recommended pressure to prevent deformation.
Handle Carefully: Prevent physical impact during installation or maintenance.
Regular Inspection: Monitor fiber buildup to maintain airflow efficiency.
Chemical Compatibility: Ensure cleaning solutions do not damage the screen material.
Temperature Limits: Operate within the specified temperature range to maintain integrity.
Housing Compatibility: Ensure the filter fits the machinery’s filter housing.
Clean Installation Environment: Free from dust and fiber debris.
Sealing Elements: Use compatible gaskets or O-rings.
Correct Flow Alignment: Ensure the round screen is properly aligned with airflow direction.
Tools Ready: Prepare pressure gauges and flow meters for verification after installation.
Inspect the filter screen for defects or damage.
Clean any dust or fiber debris.
Place the edge filter round screen into the housing, aligning with the airflow direction.
Position gaskets or O-rings for proper sealing.
Secure clamps or screws evenly to avoid mesh deformation.
Conduct a test to verify airflow, pressure drop, and sealing.
Confirm no leakage.
Ensure consistent airflow.
Record installation data for future reference.
Manual Cleaning: Soft brushes and mild detergents remove fiber buildup.
Chemical Cleaning: Compatible solutions can remove stubborn residues.
Ultrasonic Cleaning: Recommended for fine mesh in high-precision lines.
Backflushing: Reverse airflow to remove trapped fibers without screen removal.
| Task | Frequency | Notes |
|---|---|---|
| Visual Inspection | Weekly | Check for wear or fiber buildup |
| Cleaning | Monthly | Adjust based on fiber accumulation |
| Performance Testing | Quarterly | Verify airflow and filtration efficiency |
| Replacement | As Needed | Replace worn or damaged screens promptly |
Low Pressure Drop: Optimized mesh reduces energy consumption.
Extended Service Life: Fewer replacements lower material and labor costs.
Smooth Airflow: Minimizes turbulence and pressure loss.
Sustainable Materials: Stainless steel and alloy ensure long-term use and recyclability.
| Issue | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow | Fiber clogging | Clean manually, chemically, or backflush |
| Mesh Damage | Impact or mishandling | Replace screen and follow proper handling |
| Leakage | Misaligned screen or worn gasket | Reinstall and replace sealing elements |
| Premature Wear | High abrasion or overpressure | Monitor operating conditions and adjust |
Installation Assistance: Guidance on alignment and sealing.
Performance Optimization: Recommendations for mesh size and airflow.
Preventive Maintenance: Cleaning schedules and inspection guidance.
Custom Solutions: Tailored screens for specific nonwoven lines.
After-Sales Support: Dedicated support via phone, email, and online consultation.
The Edge Filter Round Screen for Nonwoven Fabric Industry is a high-performance, durable filtration solution designed for abrasive fiber processing. Following proper usage, installation, maintenance, and energy-saving practices ensures consistent airflow, reduced downtime, and extended service life.
It is ideal for spunbond, meltblown, carding, and needle-punched systems, providing reliable filtration performance and operational efficiency in demanding nonwoven production environments.
